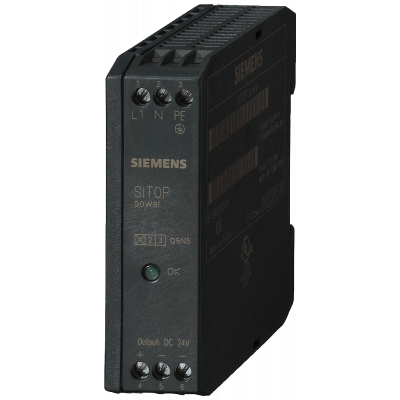

Power supply SITOP power DC/DC, 48-220 V DC, 24 V DC/0.375 A
89.04€
Включая НДС
Артикул: 6EP1731-2BA00
SITOP POWER 0.375, МИНИАТЮРНЫЙ СТАБИЛИЗИР. БЛОК ПИТАНИЯ: ГАЛЬВАН. РАЗД. ВХОД. И ВЫХОД. ЦЕПЕЙ, 1-ФАЗН. ВХОДН. НАПР. ~30 … 187 В, 47 … 63 ГЦ ИЛИ =30 … 264 В, ВЫХОД =24 В/ 0.375 A, ЗАЩИТА НАГРУЗКИ ОТ ПЕРЕНАПРЯЖ. И КЗ, НАСТРАИВАЕМЫЙ УРОВЕНЬ ВЫХОДН. НАПРЯЖ. The power supply SITOP power is suitable for connection to DC power networks. It is used in automation solutions at the bottom of the low-end performance range. The wide-range input for 48-220 V DC and the compact and slim design make the power supply especially suitable for solutions with little mounting space and in combination with low voltage switchgear. Regardless of the industry or requirements, Siemens offers reliable and efficient power supplies for every plant.
Параметры
| Width | 22.5 |
| Height | 80.0 |
| Depth | 91.0 |
| Built-in height | 180.0 |
| Power consumption | - |
| Built-in width | 22.5 |
| Modular version | Да |
| Suitable for safety functions | - |
| Width in number of modular spacings | - |
| Voltage type of supply voltage | DC |
| Power output | 9.0 |
| Output voltage stabilized | Да |
| Type of electric connection | Screw connection |
| Rail mounting possible | Да |
| Wall mounting possible | Нет |
| Stabilized | Да |
| Degree of protection (IP) | IP20 |
| Direct mounting possible | Нет |
| 1st secondary output voltage | 24 |
| 2nd secondary output voltage | - |
| 3rd secondary output voltage | - |
| Secondary voltage adjustable | Нет |
| Rated supply voltage at AC 50 Hz | - |
| Rated supply voltage at AC 60 Hz | - |
| Rated supply voltage at DC | 48 |
| Short-circuit-proof | Да |
| Performance level acc. EN ISO 13849-1 | - |
| Max. output current 1 | 0.375 |
| Max. output current 2 | - |
| Max. output current 3 | - |
| Nominal value output voltage 1 | - |
| Nominal value output voltage 2 | - |
| Nominal value output voltage 3 | - |
| Nominal value output current 1 | 0.375 |
| Nominal value output current 2 | - |
| Nominal value output current 3 | - |
| SIL according to IEC 61508 | - |
| Degree of protection (NEMA) | - |
