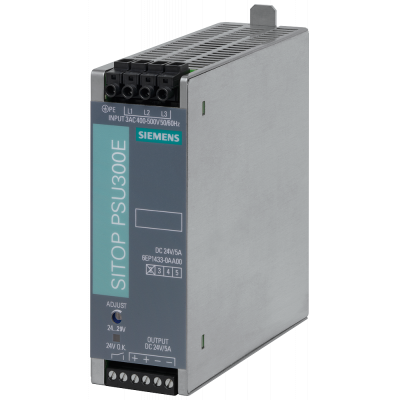

SITOP 24V/5A, СТАБИЛИЗИРОВАННЫЙ БЛОК ПИТАНИЯ, ВХОД: 3 ~400-500 В, ВЫХОД: =24 В/5 A, ПОДВОД ПИТАНИЯ СВЕРХУ, МОНОРЕЛЬС
232.78€
Включая НДС
Артикул: 6EP1433-0AA00
SITOP 24V/5A, СТАБИЛИЗИРОВАННЫЙ БЛОК ПИТАНИЯ, ВХОД: 3 ~400-500 В, ВЫХОД: =24 В/5 A, ПОДВОД ПИТАНИЯ СВЕРХУ, МОНОРЕЛЬС
Параметры
| Width | 42.0 |
| Height | 125.0 |
| Depth | 125.0 |
| Built-in height | 225.0 |
| Power consumption | - |
| Built-in width | 42.0 |
| Modular version | Да |
| Suitable for safety functions | - |
| Width in number of modular spacings | - |
| Voltage type of supply voltage | AC |
| Power output | 120.0 |
| Output voltage stabilized | Да |
| Type of electric connection | Screw connection |
| Rail mounting possible | Да |
| Wall mounting possible | Нет |
| Stabilized | Да |
| Degree of protection (IP) | IP20 |
| Direct mounting possible | Нет |
| 1st secondary output voltage | 24 |
| 2nd secondary output voltage | - |
| 3rd secondary output voltage | - |
| Secondary voltage adjustable | Да |
| Rated supply voltage at AC 50 Hz | 400 |
| Rated supply voltage at AC 60 Hz | 500 |
| Rated supply voltage at DC | - |
| Short-circuit-proof | Да |
| Performance level acc. EN ISO 13849-1 | - |
| Max. output current 1 | 5 |
| Max. output current 2 | - |
| Max. output current 3 | - |
| Nominal value output voltage 1 | - |
| Nominal value output voltage 2 | - |
| Nominal value output voltage 3 | - |
| Nominal value output current 1 | 5.0 |
| Nominal value output current 2 | - |
| Nominal value output current 3 | - |
| SIL according to IEC 61508 | - |
| Degree of protection (NEMA) | - |
