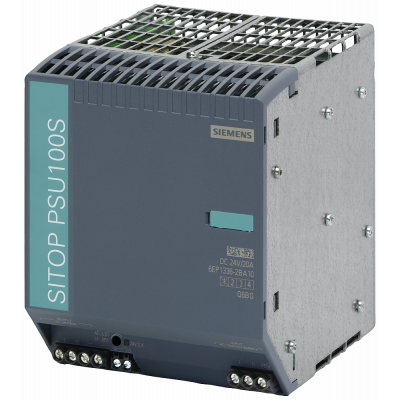

Power supply SITOP PSU100S, single-phase 24 V DC/20 A
268.39€
Включая НДС
Артикул: 6EP1336-2BA10
SITOP PSU100S 20 A, СТАБИЛИЗИРОВАННЫЙ БЛОК ПИТАНИЯ ВХОД: ~120/230 В, ВЫХОД: =24 В/20 A The SITOP smart single-phase power supplies are the universal and powerful standard power supplies for machine and plant construction. Despite their compact design, they offer excellent overload response: Thanks to 150% extra power, loads with high power consumption can be connected without any problems and the permanent overload capacity of 120% offers power reserves in case of expansions. The high degree of efficiency ensures low energy consumption and minimal heat generation inside the control cabinet. To further increase 24 V availability, the SITOP smart power supplies can be combined with buffer, DC-UPS, redundancy and selectivity modules. Regardless of the industry or requirements, Siemens offers reliable and efficient power supplies for every plant.
Параметры
| Width | 115.0 |
| Height | 145.0 |
| Depth | 150.0 |
| Built-in height | 245.0 |
| Power consumption | - |
| Built-in width | 120.0 |
| Modular version | Да |
| Suitable for safety functions | - |
| Width in number of modular spacings | - |
| Voltage type of supply voltage | AC |
| Power output | 480.0 |
| Output voltage stabilized | Да |
| Type of electric connection | Screw connection |
| Rail mounting possible | Да |
| Wall mounting possible | Нет |
| Stabilized | Да |
| Degree of protection (IP) | IP20 |
| Direct mounting possible | Нет |
| 1st secondary output voltage | 24 |
| 2nd secondary output voltage | - |
| 3rd secondary output voltage | - |
| Secondary voltage adjustable | Да |
| Rated supply voltage at AC 50 Hz | 230 |
| Rated supply voltage at AC 60 Hz | 120 |
| Rated supply voltage at DC | - |
| Short-circuit-proof | Да |
| Performance level acc. EN ISO 13849-1 | - |
| Max. output current 1 | 20 |
| Max. output current 2 | - |
| Max. output current 3 | - |
| Nominal value output voltage 1 | - |
| Nominal value output voltage 2 | - |
| Nominal value output voltage 3 | - |
| Nominal value output current 1 | 20.0 |
| Nominal value output current 2 | - |
| Nominal value output current 3 | - |
| SIL according to IEC 61508 | - |
| Degree of protection (NEMA) | - |
