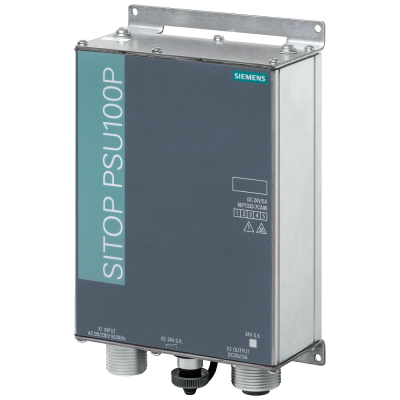

Power supply SITOP PSU100P, single-phase 24 V DC/5 A in IP67 for wall mounting
359.98€
Включая НДС
Артикул: 6EP1333-7CA00
SITOP PSU100P IP67 РЕГУЛИРУЕМЫЙ БЛОК ЭЛЕКТРОПИТАНИЯ ВХОД: AC 120/230 В ВЫХОД: DC 24 В/5 A The SITOP PSU100P single-phase power supplies for wall mounting, with their rugged design in IP67 degree of protection, are ideally suited for distributed applications outside the control cabinet. The automatic selection of the input voltage of the single-phase devices and the temperature range from -25° to +60°C enable worldwide use. The high degree of efficiency up to 93% minimizes heat generation and energy consumption. A floating signal contact returns the status of the output voltage and enables easy integration in the plant. Regardless of the industry or requirements, Siemens offers reliable and efficient power supplies for every plant.
Параметры
| Width | 120.0 |
| Height | 181.0 |
| Depth | 60.5 |
| Built-in height | - |
| Power consumption | - |
| Built-in width | 120.0 |
| Modular version | Да |
| Suitable for safety functions | - |
| Width in number of modular spacings | - |
| Voltage type of supply voltage | AC |
| Power output | 133.0 |
| Output voltage stabilized | Да |
| Type of electric connection | Screw connection |
| Rail mounting possible | Нет |
| Wall mounting possible | Да |
| Stabilized | Да |
| Degree of protection (IP) | IP67 |
| Direct mounting possible | Да |
| 1st secondary output voltage | 24 |
| 2nd secondary output voltage | - |
| 3rd secondary output voltage | - |
| Secondary voltage adjustable | Нет |
| Rated supply voltage at AC 50 Hz | 230 |
| Rated supply voltage at AC 60 Hz | 120 |
| Rated supply voltage at DC | - |
| Short-circuit-proof | Да |
| Performance level acc. EN ISO 13849-1 | - |
| Max. output current 1 | 5 |
| Max. output current 2 | - |
| Max. output current 3 | - |
| Nominal value output voltage 1 | - |
| Nominal value output voltage 2 | - |
| Nominal value output voltage 3 | - |
| Nominal value output current 1 | 5.0 |
| Nominal value output current 2 | - |
| Nominal value output current 3 | - |
| SIL according to IEC 61508 | - |
| Degree of protection (NEMA) | - |
