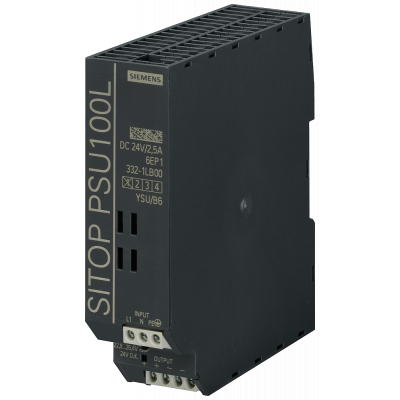

Power supply SITOP PSU100L, single-phase 24 V DC/2.5 A
62.33€
Включая НДС
Артикул: 6EP1332-1LB00
SITOP PSU100L 24 V/2.5 A, СТАБИЛИЗИРОВАННЫЙ БЛОК ПИТАНИЯ, ВХОД: ~120/230 В, ВЫХОД: =24 В/2,5 A The SITOP lite single-phase power supplies are designed to meet basic requirements in industrial environments and offer all important functions at a favorable price. The wide-range input with manual selection enables connection to many different single-phase supply systems. Thanks to their slim design, the power supply units, require little space on the mounting rail, and their high degree of efficiency ensures low thermal losses in the control cabinet. To further increase 24 V availability, the SITOP lite power supplies can be combined with buffer, DC UPS, redundancy and selectivity modules. Regardless of the industry or requirements, Siemens offers reliable and efficient power supplies for every plant.
Параметры
| Width | 32.5 |
| Height | 125.0 |
| Depth | 120.0 |
| Built-in height | 225.0 |
| Power consumption | - |
| Built-in width | 32.5 |
| Modular version | Да |
| Suitable for safety functions | - |
| Width in number of modular spacings | - |
| Voltage type of supply voltage | AC |
| Power output | 60.0 |
| Output voltage stabilized | Да |
| Type of electric connection | Screw connection |
| Rail mounting possible | Да |
| Wall mounting possible | Нет |
| Stabilized | Да |
| Degree of protection (IP) | IP20 |
| Direct mounting possible | Нет |
| 1st secondary output voltage | 24 |
| 2nd secondary output voltage | - |
| 3rd secondary output voltage | - |
| Secondary voltage adjustable | Да |
| Rated supply voltage at AC 50 Hz | 230 |
| Rated supply voltage at AC 60 Hz | 120 |
| Rated supply voltage at DC | - |
| Short-circuit-proof | Да |
| Performance level acc. EN ISO 13849-1 | - |
| Max. output current 1 | 2.5 |
| Max. output current 2 | - |
| Max. output current 3 | - |
| Nominal value output voltage 1 | - |
| Nominal value output voltage 2 | - |
| Nominal value output voltage 3 | - |
| Nominal value output current 1 | 2.5 |
| Nominal value output current 2 | - |
| Nominal value output current 3 | - |
| SIL according to IEC 61508 | - |
| Degree of protection (NEMA) | - |
