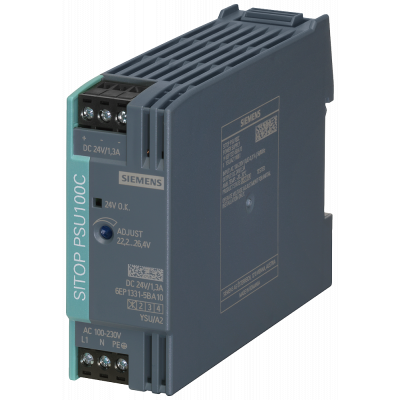

Power supply SITOP PSU100C, single-phase 24 V DC/1.3 A
61.06€
Включая НДС
Артикул: 6EP1331-5BA10
SITOP PSU100C 24 V/1,3 A СТАБИЛИЗИРОВАННЫЙ БЛОК ПИТАНИЯ ВХОД: ~120-230 В ВЫХОД: =24 В1,3 A The SITOP compact single-phase power supplies are slim, space-saving power supplies for the low-end performance range. They are used for distributed applications in switchboxes or in small control cabinets. They are characterized by their low power loss over the entire load range. Losses are extremely low even in no-load operation, which is why these units are well-suited for efficient supply of machines and plants that are often in stand-by mode, for example. The switch-mode power supplies have a wide-range input for AC and DC power networks, with plug-in terminals that facilitate easy electrical connection. The wide temperature range and extensive certifications offer universal application possibilities. To further increase 24 V availability, the SITOP compact power supplies can be combined with redundancy modules and DC UPS Regardless of the industry or requirements, Siemens offers reliable and efficient power supplies for every plant.
Параметры
| Width | 30.0 |
| Height | 80.0 |
| Depth | 100.0 |
| Built-in height | 180.0 |
| Power consumption | - |
| Built-in width | 30.0 |
| Modular version | Да |
| Suitable for safety functions | - |
| Width in number of modular spacings | - |
| Voltage type of supply voltage | AC/DC |
| Power output | 30.0 |
| Output voltage stabilized | Да |
| Type of electric connection | Screw connection |
| Rail mounting possible | Да |
| Wall mounting possible | Нет |
| Stabilized | Да |
| Degree of protection (IP) | IP20 |
| Direct mounting possible | Нет |
| 1st secondary output voltage | 24 |
| 2nd secondary output voltage | - |
| 3rd secondary output voltage | - |
| Secondary voltage adjustable | Да |
| Rated supply voltage at AC 50 Hz | 230 |
| Rated supply voltage at AC 60 Hz | 100 |
| Rated supply voltage at DC | - |
| Short-circuit-proof | Да |
| Performance level acc. EN ISO 13849-1 | - |
| Max. output current 1 | 1.3 |
| Max. output current 2 | - |
| Max. output current 3 | - |
| Nominal value output voltage 1 | - |
| Nominal value output voltage 2 | - |
| Nominal value output voltage 3 | - |
| Nominal value output current 1 | 1.3 |
| Nominal value output current 2 | - |
| Nominal value output current 3 | - |
| SIL according to IEC 61508 | - |
| Degree of protection (NEMA) | - |
