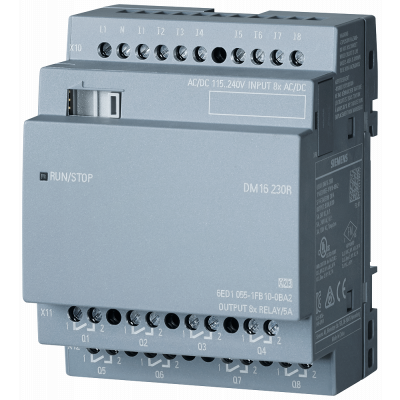

LOGO! DM 230R For LOGO! 8
138.65€
Включая НДС
Артикул: 6ED1055-1FB10-0BA2
LOGO! DM16 230R, МОДУЛЬ РАСШИРЕНИЯ, НАПРЯЖЕНИЕ ПИТАНИЯ/ВХОДОВ/ВЫХОДОВ: 230 В/230 В/РЕЛЕ, ШИРИНА 4TE, 8 DI/8 DO, ДЛЯ LOGO! 8 The LOGO! expansion modules enable a LOGO! configuration to be expanded in a very individual way. A LOGO! 8 basic unit can be expanded to 24 digital inputs, 20 digital outputs, 8 analog inputs and 8 analog outputs. For this purpose, ten different expansion modules are available which allow expansion with digital and analog inputs and outputs using different input voltages.
Параметры
| Width | 71.5 |
| Height | 90.0 |
| Depth | 58.0 |
| Input current at signal 1 | 0.13 |
| Suitable for safety functions | Нет |
| Number of digital inputs | 8 |
| Number of digital outputs | 8 |
| Time delay at signal exchange | - |
| Voltage type of supply voltage | AC/DC |
| Type of voltage (input voltage) | AC/DC |
| Redundancy | Нет |
| Output current | 5.0 |
| Short-circuit protection, outputs available | Нет |
| Type of digital output | Relay |
| Type of electric connection | Screw connection |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Category according to EN 954-1 | - |
| Performance level acc. EN ISO 13849-1 | - |
| Supply voltage AC 50 Hz | 85 |
| Supply voltage AC 60 Hz | 85 |
| Supply voltage DC | 100.0 |
| Permitted voltage at output | 0.0 |
| Permitted voltage at input | 0.0 |
| Type of output voltage | AC/DC |
| Digital inputs configurable | Да |
| Digital outputs configurable | Да |
| SIL according to IEC 61508 | - |
