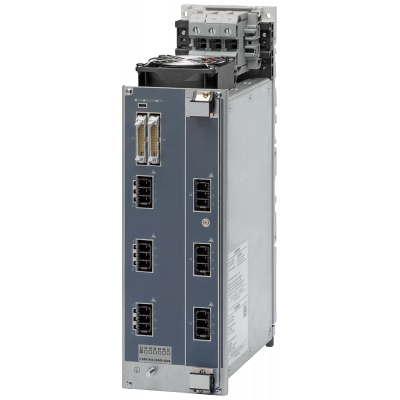

SIPLUS HCS4300 POM4320 rear panel mounting (IEC) Backplane mounting (IEC)
1 704.48€
Включая НДС
Артикул: 6BK1943-2CA00-0AA2
SIPLUS HCS4300 POM4320 модуль силовых выходов для монтажа на заднюю панель шкафа (IEC). 9 силовых выходов с макс. мощностью 7680Вт (в зависимости от пускового тока источника, ограничение может быть макс. 4000Вт) HCS4300 Power Output Module up to 69.1 kW output power per module. Backplane mounting (IEC)
Параметры
| Model | Expansion device |
| Type of power supply | Internal |
| Type of load | Resistive load |
| Rated frequency | - |
| With approval according to UL | Нет |
| Type of fastening | Other |
| Rated switching capacity | 83.0 |
| Voltage type of supply voltage | AC |
| Integrated diagnosis function | - |
| Short-circuit protection, outputs available | - |
| Overload-/temperature protection | Да |
| Degree of protection (IP) | IP20 |
| Type of interface | Other |
| Rated supply voltage at AC | - |
| Rated supply voltage at DC | - |
| Built-in position | Vertical |
| Type of venting | Self-ventilation |
| Type of heating emitter control | - |
| Number of outputs for heating emitter | 9 |
| Number of heating emitters per output | 1 |
| Output voltage for heating power | 400 |
| Output current for heating power | 16 |
| Power capacity for heating power per output | 6.4 |
| Number of outputs for fans | - |
| Output voltage for fans | - |
| Power carrying capacity for fans per output | - |
