SIPLUS HCS4200 POM4220 High-end
1 167.70€
Включая НДС
Артикул: 6BK1942-2DA00-0AA0

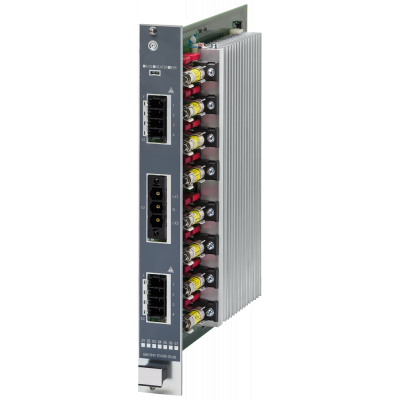

SIPLUS HCS4200 POM4220 Highend. Модуль силовых выходов (POM) для установки в HCS RACK4200. С 8 выходами, каждый макс. 5540 Вт при 277 В и 9600 Вт при 480 В (для рабочего режима в полуволне: в зависимости от разрушающего тока нагрузки ограничение , ограничение макс. 3324 Вт при 277 В и 5760 Вт при 480 В) HCS4200 Power Output Module for energy-efficient controlling of the heating elements. Max. output current 20 A
Параметры
| Model | Expansion device |
| Type of power supply | Internal |
| Type of load | Resistive load |
| Rated frequency | - |
| With approval according to UL | Да |
| Type of fastening | Screw mounting |
| Rated switching capacity | 50.0 |
| Voltage type of supply voltage | AC |
| Integrated diagnosis function | - |
| Short-circuit protection, outputs available | - |
| Overload-/temperature protection | Да |
| Degree of protection (IP) | IP20 |
| Type of interface | Other |
| Rated supply voltage at AC | - |
| Rated supply voltage at DC | - |
| Built-in position | Vertical |
| Type of venting | Other |
| Type of heating emitter control | - |
| Number of outputs for heating emitter | 8 |
| Number of heating emitters per output | 5 |
| Output voltage for heating power | 230 |
| Output current for heating power | 20 |
| Power capacity for heating power per output | 4.6 |
| Number of outputs for fans | - |
| Output voltage for fans | - |
| Power carrying capacity for fans per output | - |
