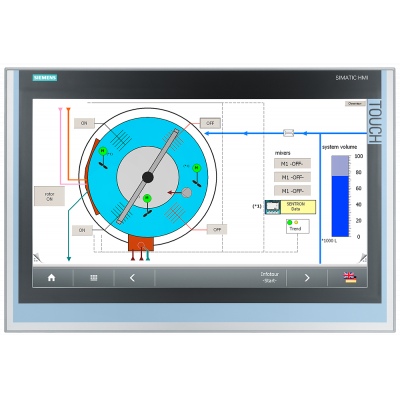

SIMATIC IFP2200, ПЛОСКО-ПАНЕЛЬНЫЙ МОНИТОР 22" (16:9), СЕНСОРНЫЙ, РАСШИРЕННАЯ ВЕРСИЯ, МАКС. 30M, 1920X1080 ПИКСЕЛЕЙ, ПИТАНИЕ =24 В И ~100-240 В, ИНТЕРФ
2 184.00€
Включая НДС
Артикул: 6AV7863-4TB10-0AA0
SIMATIC IFP2200, ПЛОСКО-ПАНЕЛЬНЫЙ МОНИТОР 22" (16:9), СЕНСОРНЫЙ, РАСШИРЕННАЯ ВЕРСИЯ, МАКС. 30M, 1920X1080 ПИКСЕЛЕЙ, ПИТАНИЕ =24 В И ~100-240 В, ИНТЕРФЕЙС DISPLAYPORT / DVI, ВКЛ. КАБЕЛЬ DVI/USB 1,8M There is a wide range of industrial applications for SIMATIC Industrial Flat Panels, whether as a desktop device for maintenance, as a built-in unit for control panels, or as a PC-based visualization and control solution which is to be installed separately from the industrial PC or server. SIMATIC industrial monitors and thin clients always offer you the optimum solution - whether as a stand-alone product or together with multiple operator stations.
Параметры
| Built-in depth | 62.5 |
| Suitable for safety functions | Нет |
| Screen diagonal | 21.5 |
| Operation temperature | 0 |
| Voltage type of supply voltage | AC/DC |
| With colour display | Да |
| Number of colours of the display | 16777216 |
| Number of pixels, horizontal | 1920 |
| Number of pixels, vertical | 1080 |
| With touch screen | Да |
| Degree of protection (IP), front side | IP65 |
| Integrated keyboard | Нет |
| Number of function buttons | 0 |
| Mouse-cursor control integrated | Нет |
| Horizontal frequency | - |
| With On Screen Display | Нет |
| With HW-interface video signal, analogue | Нет |
| With HW-interface digital video signal | Да |
| With HW-interface USB | Да |
| With HW-interface PS2 | Нет |
| Width of the front | 560.0 |
| Height of the front | 380.0 |
| Rail mounting possible | Нет |
| Frame frequency | - |
| Front build in possible | Да |
| Rack-assembly possible | Нет |
| Wall mounting/direct mounting | Нет |
| Supply voltage AC 50 Hz | 90 |
| Supply voltage AC 60 Hz | 90 |
| Supply voltage DC | 19.2 |
| Type of display | TFT |
| Number of grey-scales/blue-scales of display | - |
