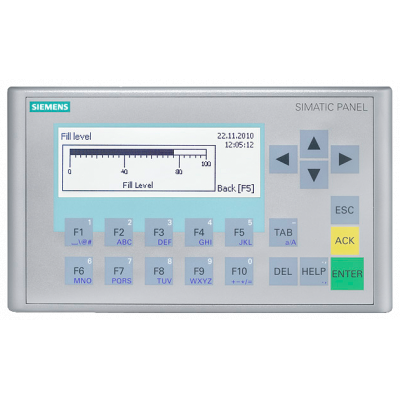

SIMATIC HMI KP300 Basic mono PN
245.11€
Включая НДС
Артикул: 6AV6647-0AH11-3AX0
SIMATIC HMI KP300 BASIC MONO PN, ПАНЕЛЬ СЕРИИ BASIC, МОНОХРОМНЫЙ 3,6" FSTN-LCD ДИСПЛЕЙ, 240X80PX, КЛАВИШИ, ИНТЕРФЕЙС PROFINET, НАСТРОЙКА В WINCC BASIC V11/ STEP7 BASIC V11, СОДЕРЖИТ ПО С ОТКРЫТЫМ КОДОМ, ПОСТАВЛЯЕМОЕ БЕСПЛАТНО - СМ. ПРИЛАГАЕМЫЙ CD The SIMATIC HMI Basic Panels of the 2nd Generation - the beauty of simplicity!Basic Panels are perfect for the cost-effective implementation of simple visualization tasks at machine level. Their basic features and functionality as well as the especially attractive price make them perfect entry-level devices for small machines and plants, harmonizing perfectly with the SIMATIC S7-1200 Basic Controllers. You have the choice between 4", 7", 9" or 12" (diagonal) widescreen displays, which are available with combined pushbutton / touch-screen operation and already support gesture control. The innovative, high-resolution devices with 64 000 color displays are also suitable for upright installation and are particularly flexible as the brightness is dimmable up to 100 %.The innovative operator interface with improved usability opens up a diverse range of options thanks to new controls and graphics. The new USB interface enables the connection of keyboard, mouse or barcode scanner, and supports simple archiving, as well as backup and restoration of all data to or from a USB flash drive directly at the panel. Now only available as spare part.
Параметры
| Built-in depth | 30.0 |
| Suitable for safety functions | Нет |
| Screen diagonal | 3.6 |
| Operation temperature | 0 |
| Voltage type of supply voltage | DC |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| Supporting protocol for TCP/IP | Да |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Нет |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Да |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Нет |
| With colour display | Да |
| Number of colours of the display | 4 |
| Number of pixels, horizontal | 240 |
| Number of pixels, vertical | 80 |
| Number of function buttons, programmable | 10 |
| With numeric keyboard | Да |
| With alpha numeric keyboard | Да |
| Useful project memory/user memory | 1000.0 |
| With message indication | Да |
| With message system (incl. buffer and confirmation) | Да |
| Process value representation (output) possible | Да |
| Process default value (input) possible | Да |
| With recipes | Да |
| Number of password levels | 50 |
| With printer output | Нет |
| Number of online languages | 5 |
| Additional software components, loadable | Нет |
| Degree of protection (IP), front side | IP65 |
| With SW interfaces | Нет |
| Width of the front | 165.0 |
| Height of the front | 97.0 |
| Rail mounting possible | Нет |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Number of interfaces PROFINET | 1 |
| Number of HW-interfaces Wireless | 0 |
| Wall mounting/direct mounting | Нет |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Да |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Нет |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 19.2 |
| Type of display | STN |
| Number of grey-scales/blue-scales of display | 0 |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| Number of buttons with LED | 0 |
| Number of system buttons | 10 |
| Touch technology | - |
| Degree of protection (NEMA), front side | - |
