SIMATIC HMI ITC1900 V3 PRO version Industrial Applications
2 607.60€
Включая НДС
Артикул: 6AV6646-1BD18-0AA0

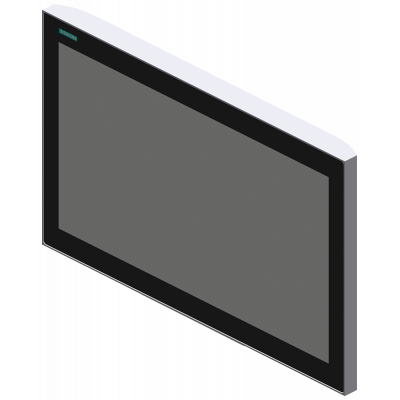

SIMATIC ITC1900 V3 PRO, промышленный тонкий клиент - корпусное устройство, широкоформатный TFT-дисплей с диагональю 19 дюймов, емкостная тач-технология, поддерживаемые протоколы: RDP, VNC, SmartServer, HTML5 и др. с логотипом Siemens, для установки на несущий рычаг с возможностью установки компонентов расширения Industrial Thin Clients SIMATIC ITC are powerful operator terminals with high-resolution widescreen touch displays in sizes 12", 15", 19", and 22". They are especially user-friendly when implementing distributed HMI solutions with Client-Server architecture and can be used flexibly, from operator control and monitoring on the machine level to connecting to control systems (SCADA) and to numeric controllers (SINUMERIK). Without wearing parts, such as fans or hard disks, and equipped with die-cast aluminum fronts, SIMATIC ITCs are especially robust and maintenance-free. The devices can be almost any distance from the server system over Industrial Ethernet. A Gigabit LAN interface, integrated web browser, and a variety of supported protocols provide a high degree of flexibility and fast communication with other systems.
Параметры
| Built-in depth | 101.0 |
| Suitable for safety functions | Нет |
| With hard disc | Да |
| With CD-RW drive | Нет |
| Screen diagonal | 18.5 |
| Operation temperature | 0 |
| Voltage type of supply voltage | DC |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 2 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 4 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Нет |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Нет |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Да |
| Number of pixels, horizontal | 1366 |
| Number of pixels, vertical | 768 |
| With touch screen | Да |
| Degree of protection (IP), front side | IP65 |
| Max. main memory | 2000.0 |
| With CD-ROM drive | - |
| With DVD-drive | Нет |
| With DVD RW drive | - |
| With floppy disc drive | Нет |
| With other storage media | Нет |
| Customer individual configuration | Нет |
| Number of free AGP-slots | 0 |
| Number of free PCI-slots | 0 |
| Number of free ISA-slots | 0 |
| Number of free PCMCIA-slots | 0 |
| Number of HW-interfaces SCSI | 0 |
| Number of HW-interfaces PS2 | 0 |
| Integrated keyboard | Нет |
| Number of function buttons | 0 |
| Mouse-cursor control integrated | Нет |
| Width of the front | 462.0 |
| Height of the front | 293.0 |
| Rail mounting possible | Нет |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Number of interfaces PROFINET | 2 |
| Number of HW-interfaces Wireless | - |
| Front build in possible | Нет |
| Mounting type, gallows mounting | Да |
| Rack-assembly possible | Нет |
| Mounting type, table foot | Нет |
| Wall mounting/direct mounting | Нет |
| Radio standard Bluetooth | - |
| Radio standard WLAN 802.11 | - |
| IO link master | Нет |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Нет |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 19.2 |
| Preinstalled operating system | - |
| Type of display | TFT |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| Number of buttons with LED | 0 |
| Number of system buttons | 0 |
| Degree of protection (NEMA) | - |
