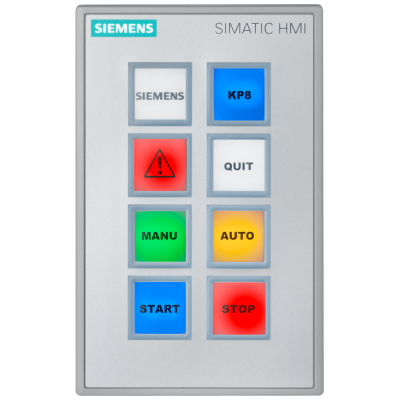

SIMATIC HMI KP8F PN
521.52€
Включая НДС
Артикул: 6AV3688-3AF37-0AX0
КНОПОЧНАЯ ПАНЕЛЬ KP8F PN ДЛЯ PROFINET С PROFISAFE, 8 КЛАВИШ С КОРОТКИМ ХОДОМ И МНОГОЦВЕТНОЙ СВЕТОДИОДНОЙ ПОДСВЕТКОЙ, 8 НАСТРАИВАЕМЫХ DI/DO, ПИТАНИЕ =24 В (ПРОХОДНОЕ ПОДКЛЮЧЕНИЕ), 2 SAFETY ВХОДА SIMATIC HMI KP8/KP8F and KP32F Key Panels can be used to implement operator panels quickly, and save a lot of time and money setting them up as they are prefabricated and ready for installation.
Параметры
| Built-in depth | 49.0 |
| Suitable for safety functions | Да |
| Number of digital inputs | 8 |
| Number of digital outputs | 8 |
| Operation temperature | 0 |
| Voltage type of supply voltage | DC |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 2 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | Нет |
| Supporting protocol for TCP/IP | Нет |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Нет |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Нет |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Нет |
| Degree of protection (IP), front side | IP65 |
| Number of buttons | 8 |
| With parameterizable buttons | Да |
| Number of indicator lamps | 8 |
| With test for buttons and indicator lamps | Да |
| Number of build in positions for control circuit devices | 0 |
| Number of LED colour modes | 5 |
| Width of the front | 98.0 |
| Height of the front | 155.0 |
| Rail mounting possible | Нет |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Number of interfaces PROFINET | 2 |
| Number of HW-interfaces Wireless | 0 |
| Front build in possible | Да |
| Rack-assembly possible | Нет |
| Wall mounting/direct mounting | Нет |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Да |
| Supporting protocol for PROFIsafe | Да |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 20.4 |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
