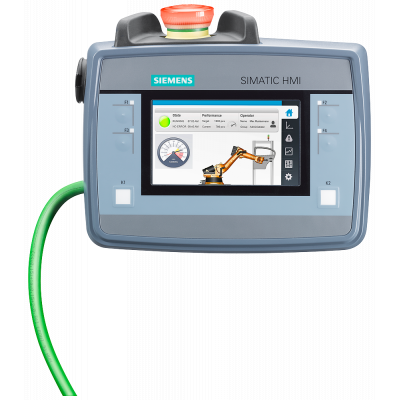

SIMATIC HMI KTP400F Mobile
1 259.28€
Включая НДС
Артикул: 6AV2125-2DB23-0AX0
SIMATIC HMI, Мобильная панель KTP400F Mobile с втроенными разрешающей кнопкой и кнопкой аварийного останова, сенсорное и клавишное управление, широкоформатный TFT-дисплей с диагональю 4 дюйма, интерфейс Profinet, настройка в среде V13 SP1 с HSP Mobile HMI with standard functionality or Safety Integrated.
Параметры
| Width | 194.0 |
| Height | 166.0 |
| Depth | 87.0 |
| Weight | 0.7 |
| Suitable for emergency stop | Да |
| Suitable for safety functions | Да |
| Screen diagonal | 4.3 |
| Operation temperature | 0 |
| Voltage type of supply voltage | DC |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| Supporting protocol for TCP/IP | Да |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Нет |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Да |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Нет |
| With colour display | Да |
| Number of colours of the display | 16777216 |
| Number of pixels, horizontal | 480 |
| Number of pixels, vertical | 272 |
| With touch screen | Да |
| Number of function buttons, programmable | 4 |
| With alpha numeric keyboard | Нет |
| Useful project memory/user memory | 4000.0 |
| With message indication | Да |
| With message system (incl. buffer and confirmation) | Да |
| Process value representation (output) possible | Да |
| Process default value (input) possible | Да |
| With recipes | Да |
| Number of password levels | 50 |
| With printer output | Нет |
| Number of online languages | 32 |
| With enabling button/emergency-stop switch | Да |
| Connection, pluggable | Да |
| Max. height of fall (in accordance with IEC 60068-2-32) | 1.2 |
| Degree of protection (IP) | IP65 |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Number of interfaces PROFINET | 1 |
| Number of HW-interfaces Wireless | 0 |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Да |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Да |
| Supporting protocol for PROFIsafe | Да |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 19.2 |
| Type of display | TFT |
| Number of grey-scales/blue-scales of display | - |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| Number of buttons with LED | 4 |
| Number of system buttons | 0 |
| Degree of protection (NEMA) | - |
