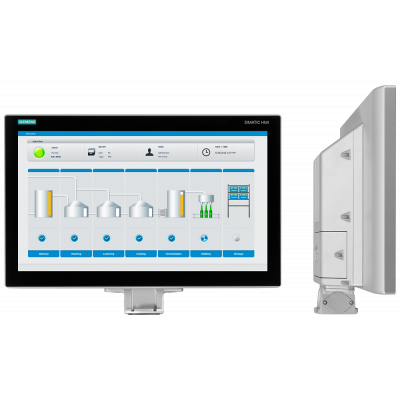

SIMATIC HMI TP1900 Comfort PRO Prepared for pedestal and extension components
5 029.49€
Включая НДС
Артикул: 6AV2124-0UC24-1AX0
SIMATIC HMI TP1900 Comfort PRO, корпусная панель серии Comfort в исполнении PRO для установки на пъедестал, сенсорное управление, широкоформатный TFT-дисплей с диагональю 19", 16 млн цветов, интерфейс Profinet, интерфейс MPI/PROFIBUS DP, пользовательская память 24 МБ, WEC 2013, настройка в среде WinCC Comfort V14 SP1 с HSP The Comfort Panels are designed for implementing high-performance visualization tasks at machine-level. The Comfort Panels PRO are a device series with high degree of protection IP65 (NEMA4) and flexible mounting options - directly on the machine via special adapters, on a stand, or on a support arm system.
Параметры
| Built-in depth | 101.0 |
| Suitable for safety functions | Нет |
| Screen diagonal | 18.5 |
| Operation temperature | 0 |
| Voltage type of supply voltage | DC |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 2 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 2 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| Supporting protocol for TCP/IP | Да |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Да |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Да |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Да |
| With colour display | Да |
| Number of colours of the display | 16777216 |
| Number of pixels, horizontal | 1366 |
| Number of pixels, vertical | 768 |
| Number of function buttons, programmable | 0 |
| With numeric keyboard | Да |
| With alpha numeric keyboard | Да |
| Useful project memory/user memory | 24000.0 |
| With message indication | Да |
| With message system (incl. buffer and confirmation) | Да |
| Process value representation (output) possible | Да |
| Process default value (input) possible | Да |
| With recipes | Да |
| Number of password levels | 50 |
| With printer output | Да |
| Number of online languages | 32 |
| Additional software components, loadable | Да |
| Degree of protection (IP), front side | IP65 |
| With SW interfaces | Нет |
| Width of the front | 462.0 |
| Height of the front | 296.0 |
| Rail mounting possible | Нет |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Number of interfaces PROFINET | 2 |
| Number of HW-interfaces Wireless | 0 |
| Wall mounting/direct mounting | Нет |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Да |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Да |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 19.2 |
| Type of display | TFT |
| Number of grey-scales/blue-scales of display | - |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| Number of buttons with LED | 0 |
| Number of system buttons | 0 |
| Touch technology | Capacitive multitouch |
| Degree of protection (NEMA), front side | - |
