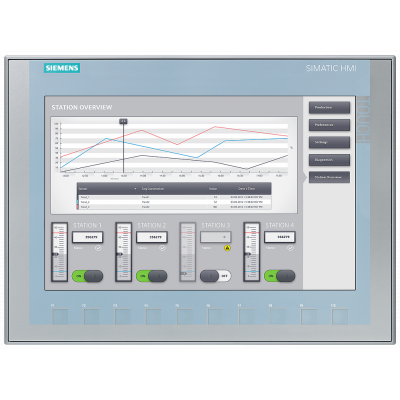

SIMATIC HMI KTP1200 Basic color PN
1 985.59€
Включая НДС
Артикул: 6AV2123-2MB03-0AX0
SIMATIC HMI, ПАНЕЛЬ ОПЕРАТОРА KTP1200 BASIC, ИЗ СЕРИИ BASIC, КНОПКИ И СЕНСОРНОЕ УПРАВЛЕНИЕ, TFT-ДИСПЛЕЙ 12", 65536 ЦВЕТОВ, ИНТЕРФЕЙС PROFINET, НАСТРОЙКА В СРЕДЕ WINCC BASIC V13/ STEP7 BASIC V13 И СТАРШЕ, СОДЕРЖИТ БЕСПЛАТНОЕ ПО С ОТКРЫТЫМ КОДОМ, СМ. ПОДРОБНОСТИ НА ПРИЛАГАЕМОМ CD Basic Panels are perfect for the cost-effective implementation of simple visualization tasks at machine level. Their basic features and functionality as well as an especially attractive price make them perfect entry-level devices.
Параметры
| Built-in depth | 60.0 |
| Suitable for safety functions | Нет |
| Screen diagonal | 12.0 |
| Operation temperature | 0 |
| Voltage type of supply voltage | DC |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| Supporting protocol for TCP/IP | Да |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Нет |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Да |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Да |
| With colour display | Да |
| Number of colours of the display | 65536 |
| Number of pixels, horizontal | 1280 |
| Number of pixels, vertical | 800 |
| Number of function buttons, programmable | 10 |
| With numeric keyboard | Да |
| With alpha numeric keyboard | Да |
| Useful project memory/user memory | 10000.0 |
| With message indication | Да |
| With message system (incl. buffer and confirmation) | Да |
| Process value representation (output) possible | Да |
| Process default value (input) possible | Да |
| With recipes | Да |
| Number of password levels | 50 |
| With printer output | Нет |
| Number of online languages | 10 |
| Additional software components, loadable | Нет |
| Degree of protection (IP), front side | IP65 |
| With SW interfaces | Нет |
| Width of the front | 330.0 |
| Height of the front | 245.0 |
| Rail mounting possible | Нет |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Number of interfaces PROFINET | 1 |
| Number of HW-interfaces Wireless | 0 |
| Wall mounting/direct mounting | Нет |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Да |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Нет |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 19.2 |
| Type of display | TFT |
| Number of grey-scales/blue-scales of display | - |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| Number of buttons with LED | 0 |
| Number of system buttons | 0 |
| Touch technology | - |
| Degree of protection (NEMA), front side | - |
