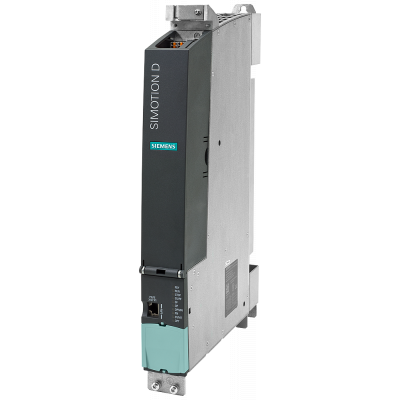

SIMOTION НА БАЗЕ ПРИВОДА CONTROL UNIT D445-2 DP/PN, КОНТРОЛЛЕР УПРАВЛЕНИЯ ДВИЖЕНИЕМ , HIGH PERFORMANCE, ИНТЕРФЕЙСЫ : 12 DI, 16 ВХ\ВЫХ , 6 DRIVE-CLIQ,
6 064.98€
Включая НДС
Артикул: 6AU1445-2AD00-0AA0
SIMOTION НА БАЗЕ ПРИВОДА CONTROL UNIT D445-2 DP/PN, КОНТРОЛЛЕР УПРАВЛЕНИЯ ДВИЖЕНИЕМ , HIGH PERFORMANCE, ИНТЕРФЕЙСЫ : 12 DI, 16 ВХ\ВЫХ , 6 DRIVE-CLIQ, 2 PROFIBUS, 3 ПОРТА PROFINET , 2 ETHERNET, 2 USB, 1 ОПЦИОНАЛЬНЫЙ СЛОТ , ВКЛ. ДВОЙНОЙ ВЕНТИЛЯТОР / БАТАРЕЙНЫЙ МОДУЛЬ И БАТАРЕИ Compact, flexibly scalable, cost-efficient and responsive: In SIMOTION D of the SIMOTION family, the PLC, technology and Motion Control functionality is integrated directly in the closed-loop control module of the SINAMICS S120 drive system. SIMOTION D is ideally suited to complex applications implemented in confined spaces. By combining the controller and the drive in one system, SIMOTION D requires little space in the control cabinet. The system is thus optimally suited to distributed or modular automation solutions - especially when it comes to complex machines that place high time-critical demands on axis couplings. SIMOTION D is the ideal solution for systems in which large axis quantity structures and minimum cycle times are required for high machine cycles rates and optimum product quality through deterministic, reproducible machine behavior. Versatile and equipped to meet even the most complex requirements: Our SIMOTION D4x5-2 multi-axis system in four performance variants for up to 128 axes (booksize format) shows its strengths especially when high-performance applications are required under confined spatial conditions.
Параметры
| Width | 50.0 |
| Model | Compact |
| Height | 380.0 |
| Depth | 270.0 |
| With display | Нет |
| Suitable for safety functions | - |
| Number of digital inputs | 12 |
| Number of digital outputs | - |
| Number of analogue inputs | - |
| Number of analogue outputs | - |
| Voltage type of supply voltage | DC |
| Type of memory | RAM |
| Memory size | 190000.0 |
| Processing time (1K, binary operation) | - |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 2 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 2 |
| Number of HW-interfaces USB | 2 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 6 |
| With optical interface | Нет |
| Additional program memory possible | - |
| Supporting protocol for TCP/IP | - |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | - |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Нет |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Да |
| Redundancy | Нет |
| Rail mounting possible | - |
| Explosion safety category for gas | - |
| Explosion safety category for dust | - |
| System accessory | Да |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | - |
| Number of interfaces PROFINET | 1 |
| Number of HW-interfaces Wireless | 0 |
| Front build in possible | Нет |
| Rack-assembly possible | Нет |
| Wall mounting/direct mounting | - |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Number of relay outputs | - |
| Max. number of time switches | 0 |
| Performance level acc. EN ISO 13849-1 | - |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | - |
| Supporting protocol for PROFIsafe | - |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 20.4 |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| SIL according to IEC 61508 | - |
