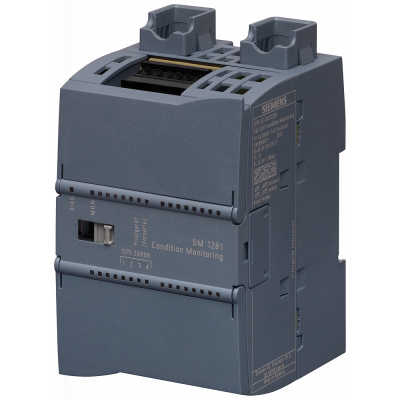

SIPLUS CMS1200 SM1281 For SIMATIC S7-1200
1 361.04€
Включая НДС
Артикул: 6AT8007-1AA10-0AA0
SIPLUS CMS1200, БАЗОВЫЙ МОДУЛЬ ВИБРОДИАГНОСТИКИ SM1281 ДЛЯ SIMATIC S7-1200, 4 КАНАЛА ДЛЯ ПОДКЛЮЧЕНИЯ IEPE-ДАТЧИКОВ ВИБРОУСКОРЕНИЯ 1 ДИСКРЕТНЫЙ ВХОД ДЛЯ ИЗМЕРЕНИЯ СКОРОСТИ ВРАЩЕНИЯ SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options The SM 1281 condition-monitoring module, as an extension to the SIMATIC S7-1200, is used for the condition monitoring of motors, generators, pumps, fans, centrifuges and compressors, for example. This allows mechanical damage to be detected at an early stage, enabling scheduled maintenance to be carried out instead of a spontaneous repair.
Параметры
| Model | - |
| Suitable for bus connection | Да |
| Modular expandable | - |
| With approval according to UL | - |
| Memory capacity | 1000.0 |
| Type of fastening | DIN rail (top hat rail) |
| Voltage type of supply voltage | DC |
| Ethernet | Да |
| Type of electric connection | Screw connection |
| Degree of protection (IP) | - |
| Supply voltage DC | 20.4 |
| Physical measurement principle | Vibration acceleration |
| Number of sensor inputs for IEPE sensors | 4 |
| Number of sensor inputs for MEMS sensors | - |
| Number of rotational speed inputs | 1 |
| Number of indicator outputs | - |
| Measuring range vibration frequency | 0.1 |
| Access via web server | - |
| Frequency-selective monitoring via vibration speed spectrum | Да |
| Frequency-selective monitoring via vibration acceleration spectrum | Да |
| Frequency-selective monitoring via envelope analysis | Да |
| Vibration characteristic monitoring via value of the vibration speed RMS | Да |
| Vibration characteristic monitoring via diagnostic characteristic value DKW | Да |
