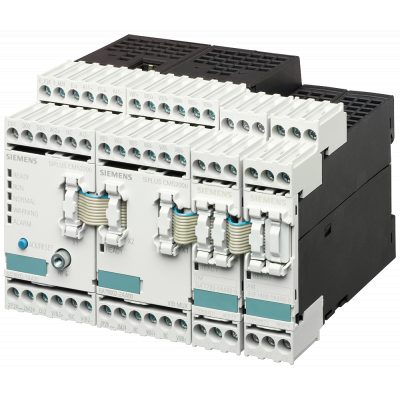

SIPLUS CMS2000 VIB
2 098.80€
Включая НДС
Артикул: 6AT8002-1AA00
SIPLUS CMS2000 - БАЗОВЫЙ МОДУЛЬ VIB, 2 IEPE КАНАЛА ИЗМЕРЕНИЯ ВИБРОУСКОРЕНИЯ, 2 АНАЛОГОВЫХ ВХОДА ДЛЯ ПАРАМЕТРОВ ПРОЦЕССА, 1 ДИСКРЕТНЫЙ ВХОД ИЗМЕРЕНИЯ СКОРОСТИ ВРАЩЕНИЯ, 3 ДИСКРЕТНЫХ ВЫХОДА ДЛЯ МОНИТОРИНГА СОСТОЯНИЯ SIPLUS CMS2000 is a stand-alone solution and is independent of the automation system. Via vibration sensors, signals are recorded, evaluated, diagnosed and visualized via a web browser. The parameters are also assigned via a web browser. Additional software is not required for the CMS2000 system.
Параметры
| Model | - |
| Suitable for bus connection | Да |
| Modular expandable | - |
| With approval according to UL | - |
| Memory capacity | 1000.0 |
| Type of fastening | DIN rail (top hat rail) |
| Voltage type of supply voltage | DC |
| Ethernet | Да |
| Type of electric connection | - |
| Degree of protection (IP) | IP20 |
| Supply voltage DC | 19.2 |
| Physical measurement principle | Vibration acceleration |
| Number of sensor inputs for IEPE sensors | 2 |
| Number of sensor inputs for MEMS sensors | 0 |
| Number of rotational speed inputs | 1 |
| Number of indicator outputs | 3 |
| Measuring range vibration frequency | 2 |
| Access via web server | - |
| Frequency-selective monitoring via vibration speed spectrum | Да |
| Frequency-selective monitoring via vibration acceleration spectrum | Да |
| Frequency-selective monitoring via envelope analysis | Да |
| Vibration characteristic monitoring via value of the vibration speed RMS | Да |
| Vibration characteristic monitoring via diagnostic characteristic value DKW | Да |
