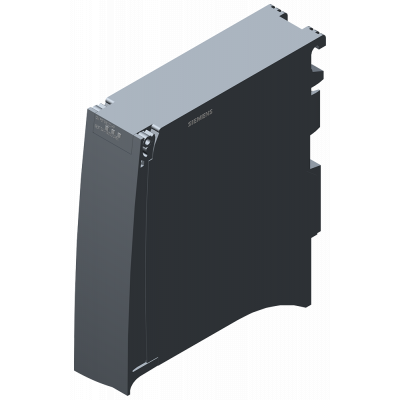

SIPLUS S7-1500, коммуникационный модуль CM PtP RS232 HF TX rail, со стойким покрытием, на основе 6ES7541-1AD00-0AB0 рабочая температура -40 ... +70°C
1 869.84€
Включая НДС
Артикул: 6AG2541-1AD00-4AB0
SIPLUS S7-1500, коммуникационный модуль CM PtP RS232 HF TX rail, со стойким покрытием, на основе 6ES7541-1AD00-0AB0 рабочая температура -40 ... +70°C (TX 85°C в течение 10 мин.) . Коммуникационный модуль с улучшенными характеристиками (HF) для последовательного подключения по RS232, свободно программируемый порт, 3964(R), USS, MODBUS RTU мастер/слейв, 115200 кбит/с, 9-полюсный Sub-D соединитель The SIMATIC ET 200MP is a modular and scalable I/O system with IP20 for universal use, and offers the same system advantages as the S7-1500. It permits the shortest bus cycle times and fastest response times, even with large volumes of data. The distributed I/O system is particularly easy to install, wire, and commission. Thanks to its scalable design, you can gear the IO station exactly to the on-site requirements. SIPLUS extreme communication modules are specially designed for harsh ambient conditions. To ensure that biologically, chemically and physically active substances do not negatively impact your automation system.
Параметры
| Width | 35.0 |
| Height | 147.0 |
| Depth | 127.0 |
| Suitable for safety functions | Нет |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 1 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | Нет |
| Supporting protocol for TCP/IP | Нет |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Нет |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Да |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Да |
| Redundancy | Нет |
| Transmission rate | - |
| With potential separation | Да |
| Explosion safety category for gas | - |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | - |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Performance level acc. EN ISO 13849-1 | - |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Нет |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Type of data transmission | Serial |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| SIL according to IEC 61508 | - |
