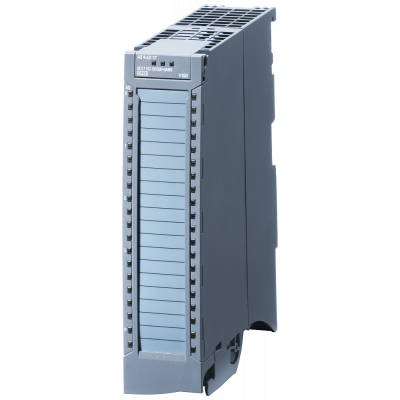

SIPLUS S7-1500, модуль аналоговых выходов AQ 4XU/I ST T1 RAIL, в исполнении для ж/д, рабочая температура -40 ... +70°C (TX 85°C в течение 10 мин.), с

SIPLUS S7-1500, модуль аналоговых выходов AQ 4XU/I ST T1 RAIL, в исполнении для ж/д, рабочая температура -40 ... +70°C (TX 85°C в течение 10 мин.), со стойким покрытием, на основе 6ES7532-5HD00-0AB0 . разрешение 16 бит, точность 0.3 % 4 каналов в группе по 4 диагностика, замещающее значение, вкл. вводной элемент The SIMATIC ET 200MP is a modular and scalable I/O system with IP20 for universal use, and offers the same system advantages as the S7-1500. It permits the shortest bus cycle times and fastest response times, even with large volumes of data. The distributed I/O system is particularly easy to install, wire, and commission. Thanks to its scalable design, you can gear the IO station exactly to the on-site requirements. Just like the CPU, the analog output modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your analog signals are reliably output.

Параметры

Width	35.0
Height	147.0
Depth	129.0
Suitable for safety functions	Нет
Number of analogue inputs	0
Number of analogue outputs	4
Input, current	-
Input, voltage	-
Input, resistor	-
Input, resistance thermometer	-
Input, thermocouple	-
Input signal, configurable	-
Output, current	Да
Output, voltage	Да
Output signal configurable	Да
Resolution of the analogue inputs	-
Resolution of the analogue outputs	16
Type of electric connection	-
Explosion safety category for gas	-
Explosion safety category for dust	None
Appendant operation agent (Ex ia)	Нет
Appendant operation agent (Ex ib)	Нет
Category according to EN 954-1	-
Performance level acc. EN ISO 13849-1	-
Analogue inputs configurable	-
Analogue outputs configurable	Да
SIL according to IEC 61508	-
