SIPLUS S7-1500, модуль дискретных входов DI 16X110VDC HF TX RAIL, рабочая температура -40 ... +70°C, Tx до +85°C в течение 10 минут, со стойким покрыт
1 102.82€
Включая НДС
Артикул: 6AG2521-7EH00-4AB0

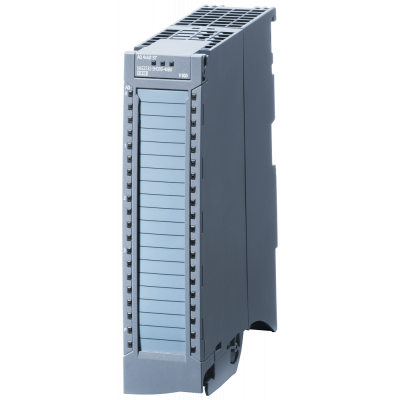

SIPLUS S7-1500, модуль дискретных входов DI 16X110VDC HF TX RAIL, рабочая температура -40 ... +70°C, Tx до +85°C в течение 10 минут, со стойким покрытием, на основе 6ES7521-7EH00-0AB0 . 16 каналов в группе по 1 =/~48 … 125 В, входная задержка 0,05 .. . 20 мс вход типа 3 (IEC 61131) диагностика, алармы процесса The SIMATIC ET 200MP is a modular and scalable I/O system with IP20 for universal use, and offers the same system advantages as the S7-1500. It permits the shortest bus cycle times and fastest response times, even with large volumes of data. The distributed I/O system is particularly easy to install, wire, and commission. Thanks to its scalable design, you can gear the IO station exactly to the on-site requirements. Just like the CPU, the digital input modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your digital signals are reliably recorded.
Параметры
Width | 35.0 |
Height | 147.0 |
Depth | 129.0 |
Input current at signal 1 | 3.0 |
Suitable for safety functions | Нет |
Number of digital inputs | 16 |
Number of digital outputs | 0 |
Time delay at signal exchange | 0.05 |
Voltage type of supply voltage | - |
Type of voltage (input voltage) | AC/DC |
Redundancy | Нет |
Output current | - |
Short-circuit protection, outputs available | - |
Type of digital output | None |
Type of electric connection | - |
Explosion safety category for gas | - |
Explosion safety category for dust | None |
Appendant operation agent (Ex ia) | Нет |
Appendant operation agent (Ex ib) | Нет |
Category according to EN 954-1 | - |
Performance level acc. EN ISO 13849-1 | - |
Supply voltage AC 50 Hz | - |
Supply voltage AC 60 Hz | - |
Supply voltage DC | - |
Permitted voltage at output | - |
Permitted voltage at input | -146.0 |
Type of output voltage | - |
Digital inputs configurable | Да |
Digital outputs configurable | - |
SIL according to IEC 61508 | - |
