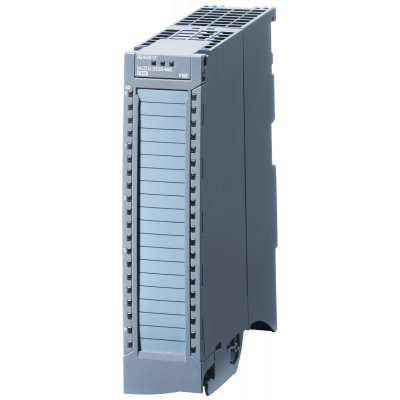

SIPLUS S7-1500, модуль дискретных входов DI 16X24VDC HF TX RAIL, рабочая температура -40 ... +70°C, TX до +85°C в течение 10 минут, со стойким покрыти
455.38€
Включая НДС
Артикул: 6AG2521-1BH00-4AB0
SIPLUS S7-1500, модуль дискретных входов DI 16X24VDC HF TX RAIL, рабочая температура -40 ... +70°C, TX до +85°C в течение 10 минут, со стойким покрытием, на основе: 6ES7521-1BH00-0AB0 . 16 каналов в группе по 16 входная задержка 0,05 ... 20 мс вход типа 3 (IEC 61131) диагностика, диагностические тревожные сообщения The SIMATIC ET 200MP is a modular and scalable I/O system with IP20 for universal use, and offers the same system advantages as the S7-1500. It permits the shortest bus cycle times and fastest response times, even with large volumes of data. The distributed I/O system is particularly easy to install, wire, and commission. Thanks to its scalable design, you can gear the IO station exactly to the on-site requirements. Just like the CPU, the digital input modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your digital signals are reliably recorded.
Параметры
| Width | 35.0 |
| Height | 147.0 |
| Depth | 129.0 |
| Input current at signal 1 | 2.5 |
| Suitable for safety functions | Нет |
| Number of digital inputs | 16 |
| Number of digital outputs | 0 |
| Time delay at signal exchange | 0.05 |
| Voltage type of supply voltage | DC |
| Type of voltage (input voltage) | DC |
| Redundancy | - |
| Output current | - |
| Short-circuit protection, outputs available | - |
| Type of digital output | None |
| Type of electric connection | Other |
| Explosion safety category for gas | - |
| Explosion safety category for dust | - |
| Appendant operation agent (Ex ia) | - |
| Appendant operation agent (Ex ib) | - |
| Category according to EN 954-1 | - |
| Performance level acc. EN ISO 13849-1 | - |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 20.4 |
| Permitted voltage at output | - |
| Permitted voltage at input | -30.0 |
| Type of output voltage | - |
| Digital inputs configurable | Да |
| Digital outputs configurable | - |
| SIL according to IEC 61508 | - |
