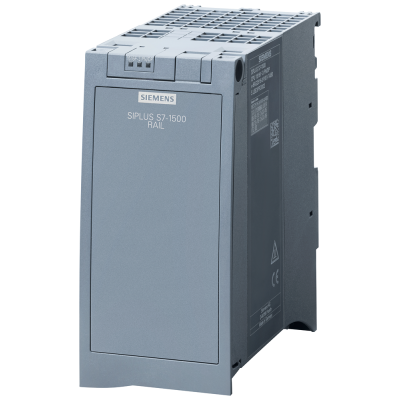

SIPLUS ET 200SP, центральный процессор CPU 1516F-3 PN/DP T1 RAIL, в исполнении для ж/д, рабочая температура -25 ... +55°C (T1 70°C в течение 10 мин.)
10 468.56€
Включая НДС
Артикул: 6AG2516-3FN01-1AB0
SIPLUS ET 200SP, центральный процессор CPU 1516F-3 PN/DP T1 RAIL, в исполнении для ж/д, рабочая температура -25 ... +55°C (T1 70°C в течение 10 мин.), со стойким покрытием, на основе: 6ES7516-3FN01-0AB0 . ЦПУ с рабочей памятью 1,5 МБ для программы и 5 МБ для данных, 1. интерфейс: PROFINET IRT с 2х-портовым коммутатором, 2. интерфейс: Ethernet, 3. интерфейс - PROFIBUS. The SIMATIC® S7-1500 Advanced Controller sets new standards with regard to system performance and usability. The seamless Integration of the SIMATIC S7-1500 Controller in the Totally Integrated Automation Portal (TIA Portal) offers advantages, such as common data storage, a uniform operating concept and central services. This makes the use of universal functions particularly easy. With its short system response times, the controller boosts productivity in the twinkling of an eye. For you, this means more flexibility and a shorter product launch time. The SIPLUS extreme variant also protects the automation system components from harsh ambient conditions, such as extremely high and low temperatures, corrosive gases, condensation, frost and biologically, chemically and physically active substances that can occur in control cabinets or container solutions in the production area. This also reliably protects your challenging automation tasks and provides additional investment security. The SIMATIC S7-1500 Advanced Controller is configured using the SIMATIC STEP 7 Professional software. A SIMATIC Memory Card is required for the operation of this module.
Параметры
Width | 70.0 |
Model | Modular |
Height | 147.0 |
Depth | 129.0 |
With display | Нет |
Suitable for safety functions | Да |
Number of digital inputs | 0 |
Number of digital outputs | 0 |
Number of analogue inputs | 0 |
Number of analogue outputs | 0 |
Voltage type of supply voltage | DC |
Type of memory | Other |
Memory size | 6500.0 |
Processing time (1K, binary operation) | 0.01 |
Supporting protocol for LON | Нет |
Number of HW-interfaces industrial Ethernet | 2 |
Number of HW-interfaces RS-232 | 0 |
Number of HW-interfaces RS-422 | 0 |
Number of HW-interfaces RS-485 | 1 |
Number of HW-interfaces USB | 0 |
Number of HW-interfaces parallel | 0 |
Number of HW-interfaces other | 0 |
With optical interface | Нет |
Additional program memory possible | Нет |
Supporting protocol for TCP/IP | Да |
Supporting protocol for ASI | Нет |
Supporting protocol for PROFIBUS | Да |
Supporting protocol for CAN | Нет |
Supporting protocol for INTERBUS | Нет |
Supporting protocol for KNX | Нет |
Supporting protocol for MODBUS | Да |
Supporting protocol for Data-Highway | Нет |
Supporting protocol for DeviceNet | Нет |
Supporting protocol for SUCONET | Нет |
Supporting protocol for other bus systems | Нет |
Redundancy | Нет |
Rail mounting possible | Да |
Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
Explosion safety category for dust | None |
System accessory | Да |
Appendant operation agent (Ex ia) | Нет |
Appendant operation agent (Ex ib) | Нет |
Supporting protocol for SERCOS | Нет |
Supporting protocol for INTERBUS-Safety | Нет |
Category according to EN 954-1 | - |
Number of interfaces PROFINET | 2 |
Number of HW-interfaces Wireless | 0 |
Front build in possible | Нет |
Rack-assembly possible | Нет |
Wall mounting/direct mounting | Нет |
Radio standard Bluetooth | Нет |
Radio standard WLAN 802.11 | Нет |
IO link master | Нет |
Number of relay outputs | 0 |
Max. number of time switches | - |
Performance level acc. EN ISO 13849-1 | Level e |
Supporting protocol for AS-Interface Safety at Work | Нет |
Supporting protocol for DeviceNet Safety | Нет |
Supporting protocol for EtherNet/IP | Нет |
Supporting protocol for Foundation Fieldbus | Нет |
Supporting protocol for PROFINET CBA | Нет |
Supporting protocol for PROFINET IO | Да |
Supporting protocol for PROFIsafe | Да |
Supporting protocol for SafetyBUS p | Нет |
Supply voltage AC 50 Hz | - |
Supply voltage AC 60 Hz | - |
Supply voltage DC | 19.2 |
Radio standard GPRS | Нет |
Radio standard GSM | Нет |
Radio standard UMTS | Нет |
SIL according to IEC 61508 | 3 |
