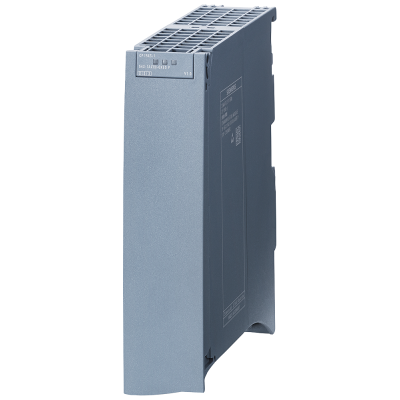

Communications processor CP 1543-1, connection SIMATIC S7-1500 to IE
3 421.68€
Включая НДС
Артикул: 6AG1543-1AX00-2XE0
SIPLUS CP, Коммуникационный процессор CP 1543-1, рабочая температура -40 ... +60°C, пуск при -25°C, со стойким покрытием, на основе 6GK7543-1AX00-0XE0. Коммуникационный процессор для подключения SIMATIC S7-1500 к Industrial Ethernet: TCP/IP, ISO, UDP, S7- коммуникации, широковещание и мультивещание, встроенные функции безопасности The SIPLUS extreme variant protects the automation components also against rough ambient conditions, such as especially high and low temperatures, corrosive gases, condensation, frost, biologically, chemically and mechanically active substances, such as they may occur in control cabinets or container solutions close to production. With this your automation tasks are reliably protected and offer additional security of investment.
Параметры
| Width | 35.0 |
| Height | 142.0 |
| Depth | 129.0 |
| Suitable for safety functions | Нет |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | Нет |
| Supporting protocol for TCP/IP | Да |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Нет |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Нет |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Нет |
| Redundancy | Нет |
| Transmission rate | 1000000.0 |
| With potential separation | Нет |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | - |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Performance level acc. EN ISO 13849-1 | None |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Нет |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Type of data transmission | Other |
| Radio standard GPRS | - |
| Radio standard GSM | - |
| Radio standard UMTS | - |
| SIL according to IEC 61508 | None |
