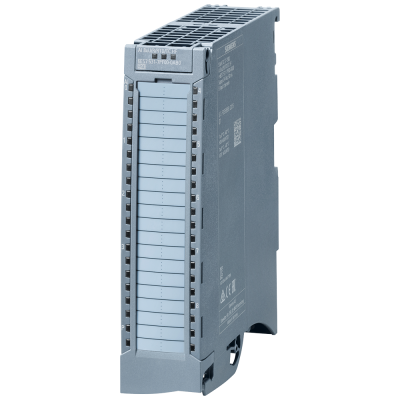

SIPLUS S7-1500 AI 8xU/R/RTD/TC HF 0 ... +60 °C based on 6ES7531-7PF00-0AB0

SIPLUS S7-1500, модуль аналоговых входов AI 8XU/R/RTD/TC HF, рабочая температура 0 ... +60°C, со стойким покрытием, на основе: 6ES7531-7PF00-0AB0 . разрешение 16 бит, точность 0.1 % 8 каналов в группе по 1 общая точка напр. ~30 В/=60 В диагностика The SIMATIC ET 200MP is a modular and scalable I/O system with IP20 for universal use, and offers the same system advantages as the S7-1500. It permits the shortest bus cycle times and fastest response times, even with large volumes of data. The distributed I/O system is particularly easy to install, wire, and commission. Thanks to its scalable design, you can gear the IO station exactly to the on-site requirements. Just like the CPU, the analog input modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your analog signals are reliably recorded.

Параметры

Width	35.0
Height	147.0
Depth	129.0
Suitable for safety functions	Нет
Number of analogue inputs	8
Number of analogue outputs	0
Input, current	Нет
Input, voltage	Да
Input, resistor	Да
Input, resistance thermometer	Да
Input, thermocouple	Да
Input signal, configurable	Да
Output, current	-
Output, voltage	-
Output signal configurable	-
Resolution of the analogue inputs	16
Resolution of the analogue outputs	-
Type of electric connection	Other
Explosion safety category for gas	-
Explosion safety category for dust	-
Appendant operation agent (Ex ia)	-
Appendant operation agent (Ex ib)	-
Category according to EN 954-1	-
Performance level acc. EN ISO 13849-1	-
Analogue inputs configurable	Да
Analogue outputs configurable	-
SIL according to IEC 61508	-
