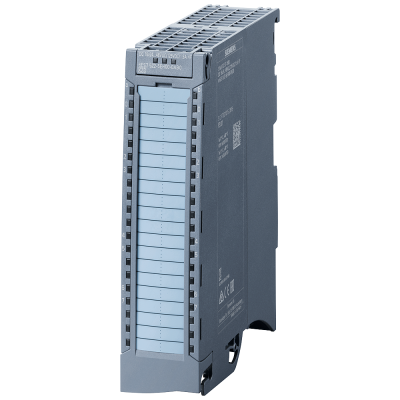

SIPLUS S7-1500 DQ 16x24 ... 48 V UC/125 V DC/0.5 A ST -40 ... +70°C based on 6ES7522-5EH00-0AB0
1 704.48€
Включая НДС
Артикул: 6AG1522-5EH00-7AB0
SIPLUS S7-1500, МОДУЛЬ ДИСКРЕТНЫХ ВЫХОДОВ DQ 16x48VUC/125V, РАБОЧАЯ ТЕМПЕРАТУРА -40 ... +70°C, ПУСК ПРИ -25°C, СО СТОЙКИМ ПОКРЫТИЕМ, НА ОСНОВЕ МОДУЛЯ 6ES7522-5EH00-0AB0. DQ16 X =/ ~24...48 В/=125 В/0,5 A 16 КНАЛОВ В ГРУППЕ ИЗ 1, 0,5 A НА ГРУППУ ЗАМЕЩАЮЩЕЕ ЗНАЧЕНИЕ, ПОЖАЛУЙСТА, УЧИТЫВАЙТЕ ПОНИЖЕНИЕ НАГРУЗОЧНОЙ СПОСОБНОСТИ The SIMATIC ET 200MP is a modular and scalable I/O system with IP20 for universal use, and offers the same system advantages as the S7-1500. It permits the shortest bus cycle times and fastest response times, even with large volumes of data. The distributed I/O system is particularly easy to install, wire, and commission. Thanks to its scalable design, you can gear the IO station exactly to the on-site requirements. Just like the CPU, the digital output modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your digital signals are reliably output.
Параметры
| Width | 35.0 |
| Height | 147.0 |
| Depth | 129.0 |
| Input current at signal 1 | - |
| Suitable for safety functions | Нет |
| Number of digital inputs | 0 |
| Number of digital outputs | 16 |
| Time delay at signal exchange | 5.0 |
| Voltage type of supply voltage | - |
| Type of voltage (input voltage) | - |
| Redundancy | Да |
| Output current | 0.5 |
| Short-circuit protection, outputs available | - |
| Type of digital output | Transistor |
| Type of electric connection | - |
| Explosion safety category for gas | - |
| Explosion safety category for dust | - |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Category according to EN 954-1 | - |
| Performance level acc. EN ISO 13849-1 | - |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | - |
| Permitted voltage at output | - |
| Permitted voltage at input | - |
| Type of output voltage | AC/DC |
| Digital inputs configurable | - |
| Digital outputs configurable | Да |
| SIL according to IEC 61508 | - |
