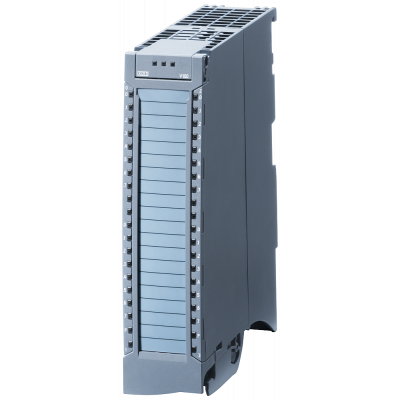

SIPLUS S7-1500 DI 16x24VDC HF -40 ... +70°C based on 6ES7521-1BH00-0AB0

SIPLUS S7-1500 DI 16X24VDC HF -40 ... +70 DEGREES C WITH CONFORMAL COATING BASED ON 6ES7521-1BH00-0AB0 . DIGITAL INPUT MODULE DI16 X DC24V, 16 CHANNELS IN GROUPS OF 16, INPUT DELAY 0.05 ... 20MS, INPUT TYPE 3 (IEC 61131), DIAGNOSIS, PROCESSALARMS The SIMATIC ET 200MP is a modular and scalable I/O system with IP20 for universal use, and offers the same system advantages as the S7-1500. It permits the shortest bus cycle times and fastest response times, even with large volumes of data. The distributed I/O system is particularly easy to install, wire, and commission. Thanks to its scalable design, you can gear the IO station exactly to the on-site requirements. Just like the CPU, the digital input modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your digital signals are reliably recorded.

Параметры

Width	35.0
Height	147.0
Depth	129.0
Input current at signal 1	2.5
Suitable for safety functions	Нет
Number of digital inputs	16
Number of digital outputs	0
Time delay at signal exchange	0.05
Voltage type of supply voltage	DC
Type of voltage (input voltage)	DC
Redundancy	Нет
Output current	-
Short-circuit protection, outputs available	-
Type of digital output	None
Type of electric connection	-
Explosion safety category for gas	-
Explosion safety category for dust	-
Appendant operation agent (Ex ia)	Нет
Appendant operation agent (Ex ib)	Нет
Category according to EN 954-1	-
Performance level acc. EN ISO 13849-1	-
Supply voltage AC 50 Hz	-
Supply voltage AC 60 Hz	-
Supply voltage DC	19.2
Permitted voltage at output	-
Permitted voltage at input	-30.0
Type of output voltage	-
Digital inputs configurable	Да
Digital outputs configurable	-
SIL according to IEC 61508	-
