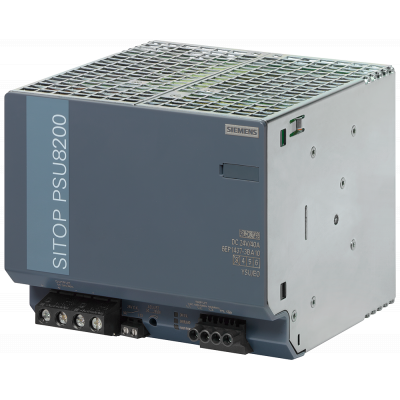

SIPLUS PSU300M, БЛОК ПИТАНИЯ, ДИАПАЗОН РАБОЧИХ ТЕМПЕРАТУР -25 ... +70 ГРАДУСОВ ЦЕЛЬСИЯ, С КОНФОРМНЫМ ПОКРЫТИЕМ, НА ОСНОВЕ 6EP1437-3BA10. СТАБИЛИЗИРОВА
948.91€
Включая НДС
Артикул: 6AG1437-3BA10-7AA0
SIPLUS PSU300M, БЛОК ПИТАНИЯ, ДИАПАЗОН РАБОЧИХ ТЕМПЕРАТУР -25 ... +70 ГРАДУСОВ ЦЕЛЬСИЯ, С КОНФОРМНЫМ ПОКРЫТИЕМ, НА ОСНОВЕ 6EP1437-3BA10. СТАБИЛИЗИРОВАННЫЙ БЛОК ПИТАНИЯЯ,: ВХОД: 3Ф ~400-500 В, ВЫХОД: =24 В/40 A The SIPLUS extreme version protects the automation components against harsh environmental conditions, such as particularly high and low temperatures, corrosive gases, condensation, frost and biologically, chemically and mechanically active substances, which can occur in control cabinets near the production or in container solutions. Your automation tasks are reliably protected and offer additional investment security.
Параметры
| Width | 150.0 |
| Height | 125.0 |
| Depth | 150.0 |
| Built-in height | 225.0 |
| Power consumption | - |
| Built-in width | 150.0 |
| Modular version | Да |
| Suitable for safety functions | - |
| Width in number of modular spacings | - |
| Voltage type of supply voltage | AC |
| Power output | 960.0 |
| Output voltage stabilized | Да |
| Type of electric connection | Screw connection |
| Rail mounting possible | Да |
| Wall mounting possible | Нет |
| Stabilized | Да |
| Degree of protection (IP) | IP20 |
| Direct mounting possible | Нет |
| 1st secondary output voltage | 24 |
| 2nd secondary output voltage | - |
| 3rd secondary output voltage | - |
| Secondary voltage adjustable | Да |
| Rated supply voltage at AC 50 Hz | 400 |
| Rated supply voltage at AC 60 Hz | 500 |
| Rated supply voltage at DC | - |
| Short-circuit-proof | Да |
| Performance level acc. EN ISO 13849-1 | - |
| Max. output current 1 | 40 |
| Max. output current 2 | - |
| Max. output current 3 | - |
| Nominal value output voltage 1 | - |
| Nominal value output voltage 2 | - |
| Nominal value output voltage 3 | - |
| Nominal value output current 1 | 40.0 |
| Nominal value output current 2 | - |
| Nominal value output current 3 | - |
| SIL according to IEC 61508 | - |
| Degree of protection (NEMA) | - |
