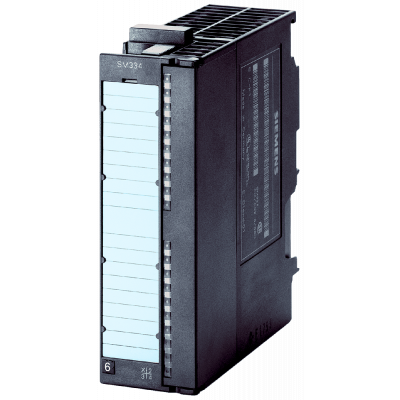

SIPLUS S7-300 SM 334, AI 4/AQ 2x12 bit -25 ... +70 °C based on 6ES7334-0KE00-0ab0
1 104.10€
Включая НДС
Артикул: 6AG1334-0KE00-7AB0
SIPLUS S7-300 SM334 4AI 2AO -25... +70 ГРАД. C WITH CONFORMLA COATING BASED ON 6ES7334-0KE00-0AB0 The SIPLUS extreme variants are specially designed for harsh ambient conditions. To ensure that biologically, chemically and physically active substances do not negatively impact your automation system.
Параметры
| Width | 40.0 |
| Height | 125.0 |
| Depth | 117.0 |
| Suitable for safety functions | Нет |
| Number of analogue inputs | 4 |
| Number of analogue outputs | 2 |
| Input, current | Нет |
| Input, voltage | Да |
| Input, resistor | Да |
| Input, resistance thermometer | Да |
| Input, thermocouple | Нет |
| Input signal, configurable | Да |
| Output, current | Нет |
| Output, voltage | Да |
| Output signal configurable | Да |
| Resolution of the analogue inputs | 12 |
| Resolution of the analogue outputs | 12 |
| Type of electric connection | Screw-/spring clamp connection |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Category according to EN 954-1 | - |
| Performance level acc. EN ISO 13849-1 | - |
| Analogue inputs configurable | Да |
| Analogue outputs configurable | Да |
| SIL according to IEC 61508 | - |
