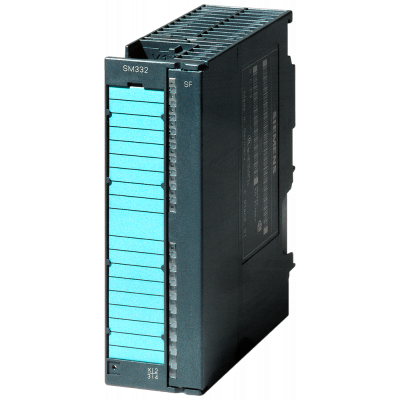

SIPLUS S7-300 SM 332, 8AQ, 0/4 ... 20 mA HART For ET 200M, -25 ... +60 °C based on 6ES7332-8TF01-0AB0
2 683.92€
Включая НДС
Артикул: 6AG1332-8TF01-2AB0
SIPLUS S7-300, МОДУЛЬ АНАЛОГОВОГО ВЫВОДА SM332 8AO HART С ПОДДЕРЖКОЙ HART, РАСШИРЕННЫЙ ДИАПАЗОН РАБОЧИХ ТЕМПЕРАТУР -25... +60 ГРАДУСОВ ЦЕЛЬСИЯ, НА ОСНОВЕ МОДУЛЯ 6ES7332-8TF01-0AB0 Just like the CPU, the analog output modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your analog signals are reliably output.
Параметры
| Width | 40.0 |
| Height | 125.0 |
| Depth | 117.0 |
| Suitable for safety functions | Нет |
| Number of analogue inputs | 0 |
| Number of analogue outputs | 8 |
| Input, current | - |
| Input, voltage | - |
| Input, resistor | - |
| Input, resistance thermometer | - |
| Input, thermocouple | - |
| Input signal, configurable | - |
| Output, current | Да |
| Output, voltage | Нет |
| Output signal configurable | Да |
| Resolution of the analogue inputs | - |
| Resolution of the analogue outputs | 16 |
| Type of electric connection | Screw-/spring clamp connection |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Category according to EN 954-1 | - |
| Performance level acc. EN ISO 13849-1 | - |
| Analogue inputs configurable | - |
| Analogue outputs configurable | Да |
| SIL according to IEC 61508 | - |
