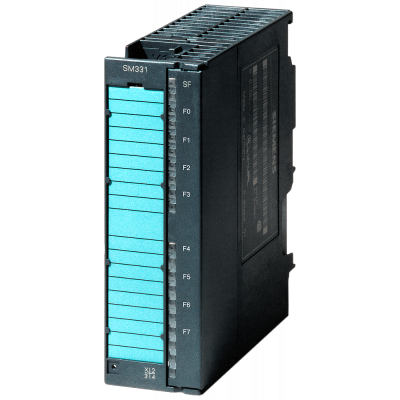

SIPLUS S7-300 SM 331, AI 4x0/4 ... 20 mA For signals from the hazardous area, -25 ... +60 °C (-25 ... +70 °C only 4-wire) based on 6ES7331-7RD00-0AB0
1 590.00€
Включая НДС
Артикул: 6AG1331-7RD00-2AB0
SIPLUS S7-300 SM331 4AI -25... +60 ГРАД. C -25 ... +70 DEGREES C (ONLY 4 W WITH CONFORMAL COATING BASED ON 6ES7331-7RD00-0AB0 The SIPLUS extreme variants are specially designed for harsh ambient conditions. To ensure that biologically, chemically and physically active substances do not negatively impact your automation system.
Параметры
| Width | 40.0 |
| Height | 125.0 |
| Depth | 120.0 |
| Suitable for safety functions | Нет |
| Number of analogue inputs | 4 |
| Number of analogue outputs | 0 |
| Input, current | Да |
| Input, voltage | Нет |
| Input, resistor | Нет |
| Input, resistance thermometer | Нет |
| Input, thermocouple | Нет |
| Input signal, configurable | Да |
| Output, current | - |
| Output, voltage | - |
| Output signal configurable | - |
| Resolution of the analogue inputs | 16 |
| Resolution of the analogue outputs | - |
| Type of electric connection | Screw-/spring clamp connection |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 2G |
| Explosion safety category for dust | ATEX dust-ex-protection, Cat. 2D |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Да |
| Category according to EN 954-1 | - |
| Performance level acc. EN ISO 13849-1 | - |
| Analogue inputs configurable | Да |
| Analogue outputs configurable | - |
| SIL according to IEC 61508 | - |
