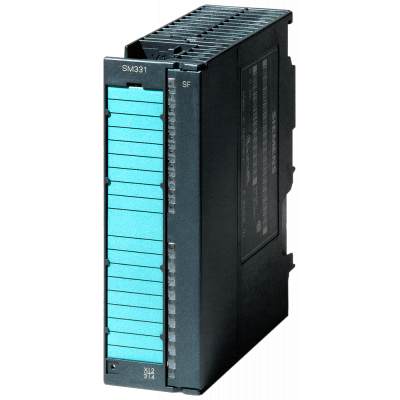

SIPLUS S7-300 SM 331, AI RTD 8x16 bit With conformal coating based on 6ES7331-7PF01-0AB0
2 073.36€
Включая НДС
Артикул: 6AG1331-7PF01-4AB0
SIPLUS S7-300, СИГНАЛЬНЫЙ МОДУЛЬ SM331 8AI, С КОНФОРМНЫМ ПОКРЫТИЕМ, НА ОСНОВЕ 6ES7331-7PF01-0AB0. АНАЛОГОВЫЕ ВХОДЫ С ОПТ. ИЗОЛЯЦИЕЙ, 2/3/4Х-ПРОВОДНОЕ ПОДКЛЮЧЕНИЕ, 8AI, ИЗМЕРЕНИЕ СОПРОТИВЛЕНИЯ, PT100/200/1000 NI100/120/200/500/1000, CU10, И ХАРАКТЕРИСТИКИ СОГЛАСНО ГОСТ, 16 (ВНУТР. 24) БИТ, 50МС, 1 X 40-ПОЛЮСНЫЙ ФРОНТАЛЬНЫЙ СОЕДИНИТЕЛЬ ЗАКАЗЫВАЕТСЯ ОТДЕЛЬНО Just like the CPU, the analog input modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your analog signals are reliably recorded.
Параметры
| Width | 40.0 |
| Height | 125.0 |
| Depth | 120.0 |
| Suitable for safety functions | Нет |
| Number of analogue inputs | 8 |
| Number of analogue outputs | 0 |
| Input, current | Нет |
| Input, voltage | Нет |
| Input, resistor | Да |
| Input, resistance thermometer | Да |
| Input, thermocouple | Нет |
| Input signal, configurable | Да |
| Output, current | - |
| Output, voltage | - |
| Output signal configurable | - |
| Resolution of the analogue inputs | 16 |
| Resolution of the analogue outputs | - |
| Type of electric connection | Screw-/spring clamp connection |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Category according to EN 954-1 | - |
| Performance level acc. EN ISO 13849-1 | - |
| Analogue inputs configurable | Да |
| Analogue outputs configurable | - |
| SIL according to IEC 61508 | - |
