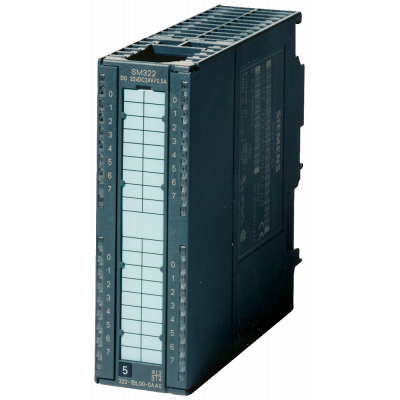

SIPLUS S7-300 SM 322, DQ 8x48 ... 125 V DC/1.5 A -25 ... +70 °C based on 6ES7322-1CF00-0AA0
929.83€
Включая НДС
Артикул: 6AG1322-1CF00-7AA0
SIPLUS S7-300, МОДУЛЬ ДИСКРЕТНОГО ВЫВОДА SM322 8DO 48-125V, ДИАПАЗОН РАБОЧИХ ТЕМПЕРАТУР -25... +70 ГРАДУСОВ ЦЕЛЬСИЯ, С КОНФОРМНЫМ ПОКРЫТИЕМ, НА ОСНОВЕ 6ES7322-1CF00-0AA0 Just like the CPU, the digital output modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your digital signals are reliably output.
Параметры
| Width | 40.0 |
| Height | 125.0 |
| Depth | 120.0 |
| Input current at signal 1 | - |
| Suitable for safety functions | Нет |
| Number of digital inputs | 0 |
| Number of digital outputs | 8 |
| Time delay at signal exchange | 2.0 |
| Voltage type of supply voltage | DC |
| Type of voltage (input voltage) | - |
| Redundancy | Нет |
| Output current | 1.5 |
| Short-circuit protection, outputs available | Да |
| Type of digital output | Transistor |
| Type of electric connection | Screw-/spring clamp connection |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Category according to EN 954-1 | - |
| Performance level acc. EN ISO 13849-1 | - |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 40.8 |
| Permitted voltage at output | 0.0 |
| Permitted voltage at input | - |
| Type of output voltage | DC |
| Digital inputs configurable | - |
| Digital outputs configurable | Да |
| SIL according to IEC 61508 | - |
