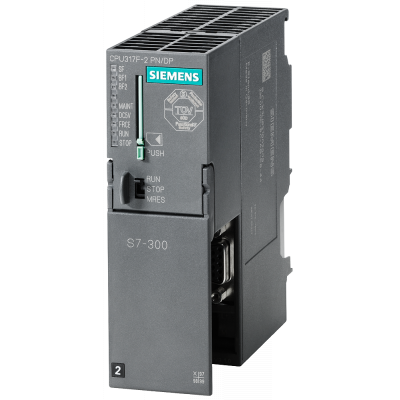

SIPLUS S7-300 CPU 317F-2 PN/DP 1.5 MB EN 50155 T1 Cat 1 Cl A/B based on 6ES7317-2FK14-0AB0
9 501.84€
Включая НДС
Артикул: 6AG1317-2FK14-2AY0
SIPLUS S7-300, ЦПУ CPU317F-2PN/DP, ДИАПАЗОН РАБОЧИХ ТЕМПЕРАТУР -25... +60 ГРАД. ЦЕЛЬСИЯ, СО СТОЙКОСТЬЮ СОГЛАСНО EN50155 T1 CAT 1 CL A/B, НА ОСНОВЕ 6ES7315-2FK14-0AB0. ЦЕНТРАЛЬНЫЙ ПРОЦЕССОР С 1,5 МБАЙТАМИ РАБОЧЕЙ ПАМЯТИ, 1. ИНТЕРФЕЙС MPI/DP 12МБИТ/С, 2. ИНТЕРФЕЙС ETHERNET PROFINET, С 2Х-ПОРТОВЫМ КОММУТАТОРОМ, МИКРОКАРТА ПАМЯТИ (MMC) ЗАКАЗЫВАЕТСЯ ОТДЕЛЬНО The SIPLUS extreme variant also protects the automation system components from harsh ambient conditions, such as extremely high and low temperatures, corrosive gases, condensation, frost and biologically, chemically and physically active substances that can occur in control cabinets or container solutions in the production area. This reliably protects your standard and challenging automation tasks and provides additional investment security.
Параметры
| Width | 40.0 |
| Model | Modular |
| Height | 125.0 |
| Depth | 130.0 |
| With display | Нет |
| Suitable for safety functions | Да |
| Number of digital inputs | 0 |
| Number of digital outputs | 0 |
| Number of analogue inputs | 0 |
| Number of analogue outputs | 0 |
| Voltage type of supply voltage | DC |
| Type of memory | RAM |
| Memory size | 1536.0 |
| Processing time (1K, binary operation) | 0.025 |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | Нет |
| Additional program memory possible | Нет |
| Supporting protocol for TCP/IP | Да |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Да |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Нет |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Да |
| Redundancy | Да |
| Rail mounting possible | Да |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| System accessory | Да |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | - |
| Number of interfaces PROFINET | 1 |
| Number of HW-interfaces Wireless | 0 |
| Front build in possible | Да |
| Rack-assembly possible | Да |
| Wall mounting/direct mounting | Да |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Number of relay outputs | 0 |
| Max. number of time switches | - |
| Performance level acc. EN ISO 13849-1 | - |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Да |
| Supporting protocol for PROFINET IO | Да |
| Supporting protocol for PROFIsafe | Да |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 20.4 |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| SIL according to IEC 61508 | - |
