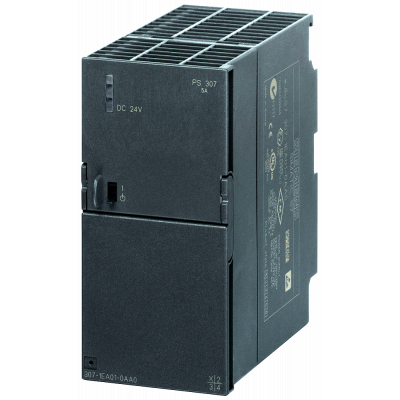

SIPLUS S7-300 PS 307, 24 V DC/5 A -25 ... +70 °C based on 6ES7307-1EA01-0AA0
365.06€
Включая НДС
Артикул: 6AG1307-1EA01-7AA0
SIPLUS S7-300, БЛОК ПИТАНИЯ PS 307, РАБ. ТЕМП. -25 ... +70°C, С КОНФОРМНЫМ ПОКРЫТИЕМ, НА ОСНОВЕ БП 6ES7307-1EA01-0AA0. СТАБИЛИЗИРОВАННЫЙ БЛОК ПИТАНИЯ, ВХОД: ~120/230 В, ВЫХОД: =24 В/5 A. Just like the CPU, the power supply is also protected against extreme ambient conditions. Regardless of whether you need an expanded temperature range, protection against humidity and condensation or physically, biologically and chemically active substances. With SIPLUS extreme, the supply of power is also reliably guaranteed even in harsh ambient conditions.
Параметры
| Width | 60.0 |
| Height | 125.0 |
| Depth | 120.0 |
| Suitable for safety functions | Нет |
| Type of voltage (input voltage) | AC |
| Power output | - |
| Redundancy | Нет |
| Output voltage at AC 50 Hz | - |
| Output voltage at AC 60 Hz | - |
| Output voltage at DC | 23.27 |
| Input voltage at AC 50 Hz | 85.0 |
| Input voltage at AC 60 Hz | 85.0 |
| Input voltage at DC | - |
| Max. output current AC 50 Hz | - |
| Max. output current AC 60 Hz | - |
| Max. output current DC | 5.0 |
| Max. input current AC 50 Hz | 2.3 |
| Max. input current AC 60 Hz | 2.3 |
| Max. input current DC | - |
| Type of output voltage | DC |
