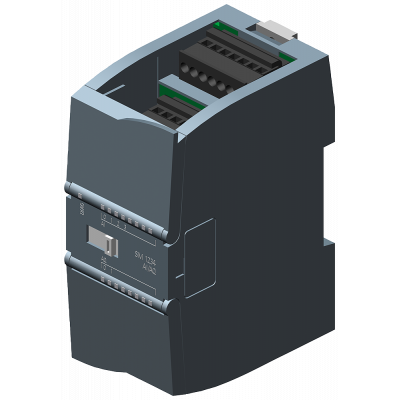

SIPLUS S7-1200 SM 1234, AI 4x13 bit/AQ 2x14 bit With conformal coating based on 6ES7234-4HE32-0XB0

SIPLUS S7-1200, модуль аналоговых входов/выходов SM1234 4AI/2AQ, для тяжёлых условий применения, со стойким покрытием, на основе 6ES7234-4HE32-0XB0 . Аналоговые входы/выходы +/-10 В: 14 бит или 0-20 мА: 13 бит SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options With signal modules you can adapt the configuration of your SIMATIC S7-1200 (except for CPU 1211C) individually to meet your requirements. For this purpose, a series of digital and analog input, output and hybrid modules is available, including fail-safe versions. Thanks to this detailed expansion option you can save space in the control cabinet and get the most from your hardware expenditure. Just like the CPU, the analog input and output modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your digital signals are reliably recorded.

Параметры

Width	45.0
Height	100.0
Depth	75.0
Suitable for safety functions	Нет
Number of analogue inputs	4
Number of analogue outputs	2
Input, current	Да
Input, voltage	Да
Input, resistor	Нет
Input, resistance thermometer	Нет
Input, thermocouple	Нет
Input signal, configurable	Да
Output, current	Да
Output, voltage	Да
Output signal configurable	Да
Resolution of the analogue inputs	12
Resolution of the analogue outputs	14
Type of electric connection	Screw connection
Explosion safety category for gas	-
Explosion safety category for dust	None
Appendant operation agent (Ex ia)	Нет
Appendant operation agent (Ex ib)	Нет
Category according to EN 954-1	-
Performance level acc. EN ISO 13849-1	-
Analogue inputs configurable	Да
Analogue outputs configurable	Да
SIL according to IEC 61508	-
