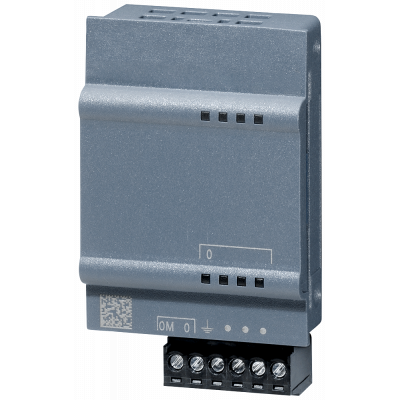

SIPLUS S7-1200 SB 1232, AQ 1x12 bit -40 ... +60 °C Startup -25 °C based on 6ES7232-4HA30-0XB0

SIPLUS S7-1200, СИГНАЛЬНАЯ ПЛАТА SB1232 1AO, -25... +70 ГРАД. ЦЕЛЬСИЯ, C КОНФОРМНЫМ ПОКРЫТИЕМ, НА ОСНОВЕ 6ES7232-4HA30-0XB0, АНАЛОГОВЫЙ ВЫХОД 1 AO, =+/- 10 В (12 БИТ) ИЛИ 0 - 20 МА (11 БИТ) SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options If you only have to extend your SIMATIC S7-1200 CPU with a few inputs or outputs, signal boards are a good alternative to signal modules. Signal boards are plugged directly onto the front of the controller (also possible with the CPU 1211C) and are available as digital and analog input, output and hybrid modules. A communications board with an RS 485 interface is also available. Signal boards thus permit subsequent expansion of the configuration without requiring any further space in the control cabinet. Just like the CPU, the analog output modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your analog signals are reliably output.

Параметры

Width	38.0
Height	62.0
Depth	21.0
Suitable for safety functions	Нет
Number of analogue inputs	0
Number of analogue outputs	1
Input, current	-
Input, voltage	-
Input, resistor	-
Input, resistance thermometer	-
Input, thermocouple	-
Input signal, configurable	Да
Output, current	Да
Output, voltage	Да
Output signal configurable	Да
Resolution of the analogue inputs	-
Resolution of the analogue outputs	12
Type of electric connection	Screw connection
Explosion safety category for gas	-
Explosion safety category for dust	None
Appendant operation agent (Ex ia)	Нет
Appendant operation agent (Ex ib)	Нет
Category according to EN 954-1	-
Performance level acc. EN ISO 13849-1	-
Analogue inputs configurable	Да
Analogue outputs configurable	Да
SIL according to IEC 61508	-
