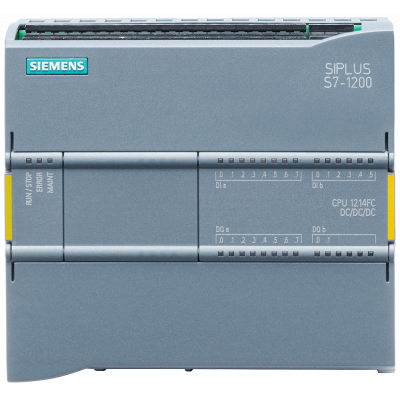

SIPLUS S7-1200 CPU 1214FC DC/DC/DC -25 ... +55 °C based on 6ES7214-1AF40-0XB
1 013.78€
Включая НДС
Артикул: 6AG1214-1AF40-5XB0
SIPLUS S7-1200 CPU 1214FC DC/DC/DC -25 ... +55 DEGREES C WITH CONFORMAL COATING BASED ON: 6ES7214-1AF40-0XB0 . COMPACT CPU, DC/DC/DC, ONBOARD I/O: 14 DI 24V DC, 10 DO 24 V DC, 2 AI 0- 10V DC, POWER SUPPLY: DC 20,4 - 28,8 V DC, PROGRAM/DATA MEMORY 125 KB SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options The Basic Controllers are first choice for implementing automation tasks flexibly and efficiently in the mid to low performance range. The CPUs are scaled in their performance and available for different input voltages and with transistor or relay outputs. Safety versions are also available. In addition to the existing integrated inputs and outputs, the compact CPUs can be expanded directly on the device or with a wide variety of signal and communication modules in order to adapt them to your exact requirements. HMI devices can likewise be connected via the integrated Ethernet interface. The memory of the CPU can be expanded by means of a memory card, while the PLC is configured using the STEP 7 Basic software in the TIA Portal. The micro PLC has a wide range of networking options via various communication standards by means of integrated functions (PROFINET, Modbus, etc.) or add-on modules (IO-Link, AS-i, etc.) and thus offers maximum flexibility in the topology and when setting up the networks. Thanks to its compact design, the fields of application for the S7-1200 are very varied and extend from simple packaging machines and heating systems to its use as a subordinate control system in larger plants. Compact design, modular structure and integrated IOs help to save space in the control cabinet. The STEP7 configuration software is integrated into the TIA Portal and can therefore rely on shared data storage, a uniform operating concept and integrated communication services for all components of a system. This means lower configuration costs and faster commissioning. The SIPLUS extreme variant also protects the automation system components against harsh ambient conditions such as extremely high and low temperatures, corrosive gases, condensation, frost and biologically, chemically and physically active substances that can occur in control cabinets or container solutions in the production area.
Параметры
| Width | 110.0 |
| Model | Compact |
| Height | 100.0 |
| Depth | 75.0 |
| With display | Нет |
| Suitable for safety functions | Да |
| Number of digital inputs | 14 |
| Number of digital outputs | 10 |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 0 |
| Voltage type of supply voltage | DC |
| Type of memory | RAM |
| Memory size | 125.0 |
| Processing time (1K, binary operation) | 0.085 |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | Нет |
| Additional program memory possible | Нет |
| Supporting protocol for TCP/IP | Да |
| Supporting protocol for ASI | Да |
| Supporting protocol for PROFIBUS | Да |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Да |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Да |
| Redundancy | Нет |
| Rail mounting possible | Да |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| System accessory | Да |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | - |
| Number of interfaces PROFINET | 1 |
| Number of HW-interfaces Wireless | 0 |
| Front build in possible | Да |
| Rack-assembly possible | Да |
| Wall mounting/direct mounting | Да |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Number of relay outputs | 0 |
| Max. number of time switches | - |
| Performance level acc. EN ISO 13849-1 | Level e |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Да |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 20.4 |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| SIL according to IEC 61508 | 3 |
