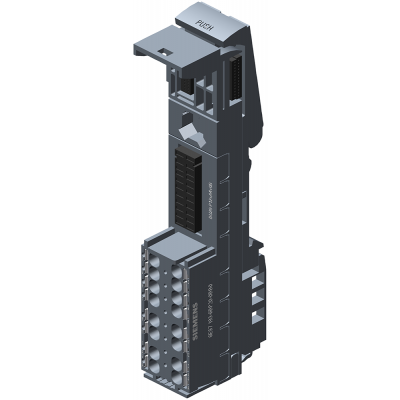

SIPLUS ET 200SP BU type B0 BU20-P12+A4+0B -40 ... +70°C based on 6ES7193-6BP20-0BB0
56.60€
Включая НДС
Артикул: 6AG1193-6BP20-7BB0
SIPLUS ET 200SP, Базовый блок BU20-P12+A4+0B, рабочая температура -40 ... +70°C, со стойким покрытием, на основе 6ES7193-6BP20-0BB0 . Базовый блок BU20-P12+A4+0B, базовый блок типа B0, втычные клеммы, с 4 дополнительными клеммами, продолжение нагрузочной группы, Ш X В: 20 мм X 117 мм SIMATIC ET 200SP is a multifunctional IO system for a wide range of applications. It is finely scalable, and designed for installation in a compact control cabinet. ET 200SP supports a large number of communication protocols, and its high speed and transmission rates provide a significantly stronger performance than conventional systems. It also offers the option of direct connection of a 2, 3 or 4-wire sensor or actuator. The conformal coating protects SIPLUS BaseUnits against special environmental influences such as biologically, chemically and physically active substances. Thus even your basic automation system is prepared for use in challenging environments.
Параметры
| Width | 20.0 |
| Height | 117.0 |
| Depth | 35.0 |
| Suitable for safety functions | Нет |
| Type of voltage (input voltage) | AC/DC |
| Number of slots | 1 |
| With pluggable modules, digital I/O | Да |
| With pluggable modules, analogue I/O | Нет |
| With pluggable modules, communication modules | Да |
| With pluggable modules, function and technology modules | Нет |
| With pluggable modules, central modules | Нет |
| With pluggable modules, others | Нет |
| With integrated power supply | Нет |
| Rail mounting possible | Да |
| Explosion safety category for gas | - |
| Explosion safety category for dust | - |
| System accessory | Да |
| Appendant operation agent (Ex ia) | - |
| Appendant operation agent (Ex ib) | - |
| Category according to EN 954-1 | - |
| Output voltage at AC 50 Hz | - |
| Output voltage at AC 60 Hz | - |
| Output voltage at DC | - |
| Front build in possible | Да |
| Rack-assembly possible | Да |
| Wall mounting/direct mounting | Нет |
| Input voltage at AC 50 Hz | 93 |
| Input voltage at AC 60 Hz | 93 |
| Input voltage at DC | 19.2 |
| Max. output current AC 50 Hz | - |
| Max. output current AC 60 Hz | - |
| Max. output current DC | - |
| Max. input current AC 50 Hz | - |
| Max. input current AC 60 Hz | - |
| Max. input current DC | - |
| Performance level acc. EN ISO 13849-1 | - |
| Type of output voltage | AC/DC |
| SIL according to IEC 61508 | - |
