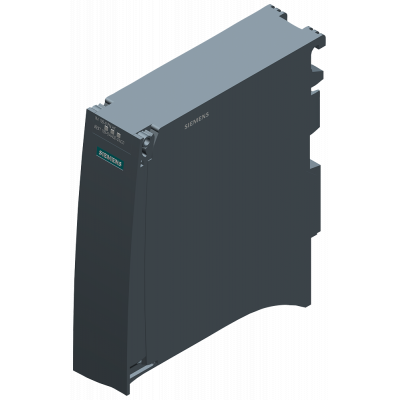

SIPLUS ET 200MP IM 155-5 PN HF -40 ... +60 °C based on 6ES7155-5AA00-0AC0
1 272.00€
Включая НДС
Артикул: 6AG1155-5AA00-2AC0
SIPLUS ET 200MP IM 155-5 PN HF -40 ... +60 GRAD C WITH CONFORMAL COATING BASED ON 6ES7155-5AA00-0AC0 . PROFINET IO-DEVICE INTERFACEMODULE IM 155-5 PN HF FOR ET 200MP ELEKTRONIKMODULES, UP TO 12 IO-MODULES WITHOUT ADDITIONAL PS, UP TO 30 IO- MODULES WITH ADDITIONONAL PS SHARED DEVICE, MRP, IRT >=0.25MS, ISOCHRONICITY FW-UPDATE, I<(>& <)>M0...3, FAST STARTUP S2 REDUNDANCY, SHARED DEV. WITH 4 CONTROLLER The SIMATIC ET 200MP is a modular and scalable I/O system with IP20 for universal use, and offers the same system advantages as the S7-1500. It permits the shortest bus cycle times and fastest response times, even with large volumes of data. The distributed I/O system is particularly easy to install, wire, and commission. Thanks to its scalable design, you can gear the IO station exactly to the on-site requirements. Whether your distributed I/O is unprotected or installed in small control boxes, SIPLUS extreme ensures reliable operation in the field. Regardless of whether you need an expanded temperature range, protection against humidity and condensation or physically, biologically and chemically active substances. With SIPLUS extreme you are safe and sound, even in harsh ambient conditions.
Параметры
| Width | 35.0 |
| Height | 155.0 |
| Depth | 120.0 |
| Suitable for safety functions | Нет |
| Voltage type of supply voltage | DC |
| Supporting protocol for LON | Нет |
| Supporting protocol for TCP/IP | Да |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Нет |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Нет |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Нет |
| With potential separation | Да |
| Rail mounting possible | Да |
| Explosion safety category for gas | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust | None |
| Fieldbus connection over separate bus coupler possible | Нет |
| System accessory | Да |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Degree of protection (IP) | IP20 |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | - |
| Front build in possible | Нет |
| Rack-assembly possible | Нет |
| Wall mounting/direct mounting | Нет |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Performance level acc. EN ISO 13849-1 | - |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Да |
| Supporting protocol for PROFIsafe | - |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 19.2 |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| SIL according to IEC 61508 | - |
