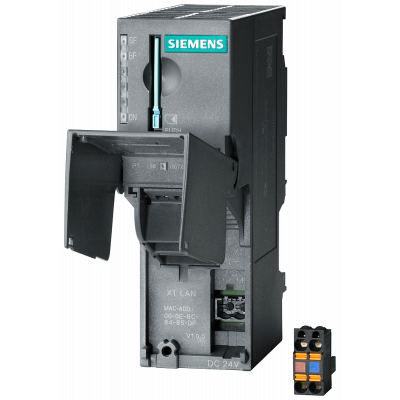

SIPLUS ET 200M IM 153-4 PN -25 ... +70 °C based on 6ES7153-4AA01-0XB0
726.31€
Включая НДС
Артикул: 6AG1153-4AA01-7XB0
SIPLUS ET200M, ИНТЕРФЕЙСНЫЙ МОДУЛЬ IM 153-4 PN IO, РАБОЧИЕ ТЕМПЕРАТУРЫ -25... +70 ГР. ЦЕЛЬСИЯ, КОНФОРМНОЕ ПОКРЫТИЕ, НА ОСНОВЕ 6ES7153-4AA01-0XB0 МАКС. 12 МОДУЛЕЙ S7-300, РАСШИР. ФУНКЦИИ: ИЗОХРОННЫЕ RT КОММ. КЛАССА 1 И 2, ЗАМЕНА БЕЗ PG, РАБОТА БЕЗ MMC Whether your distributed I/O is unprotected or installed in small control boxes, SIPLUS extreme ensures reliable operation in the field. Regardless of whether you need an expanded temperature range, protection against humidity and condensation or physically, biologically and chemically active substances. With SIPLUS extreme you are safe and sound, even in harsh ambient conditions.
Параметры
| Width | 40.0 |
| Height | 125.0 |
| Depth | 118.0 |
| Suitable for safety functions | Нет |
| Voltage type of supply voltage | DC |
| Supporting protocol for LON | Нет |
| Supporting protocol for TCP/IP | Да |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Нет |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Нет |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Нет |
| With potential separation | Да |
| Rail mounting possible | Да |
| Explosion safety category for gas | - |
| Explosion safety category for dust | - |
| Fieldbus connection over separate bus coupler possible | Нет |
| System accessory | Да |
| Appendant operation agent (Ex ia) | - |
| Appendant operation agent (Ex ib) | - |
| Degree of protection (IP) | IP20 |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | - |
| Front build in possible | Да |
| Rack-assembly possible | Нет |
| Wall mounting/direct mounting | Да |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Performance level acc. EN ISO 13849-1 | - |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Да |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 20.4 |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| SIL according to IEC 61508 | - |
