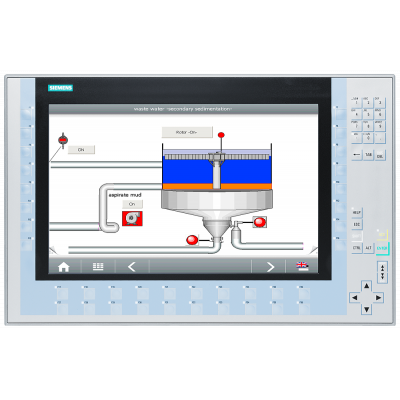

SIPLUS HMI KP1500 Comfort
6 474.48€
Включая НДС
Артикул: 6AG1124-1QC02-4AX1
SIPLUS HMI KP1500 Comfort, панель оператора для тяжёлых условий применения, со стойким покрытием, на основе 6AV2124-1QC02-0AX1 . панель оператора серии Comfort, клавиши управления, широкоформатный TFT-дисплей с диагональю 15", 16 млн цветов, интерфейс Profinet, интерфейс MPI/PROFIBUS DP, пользовательская память 24 МБ, WEC 2013, настройка в среде WinCC Comfort V14 SP1 с HSP For extremely challenging tasks in harsh ambient conditions, SIPLUS extreme devices are the equipment of choice. The conformal coating protects the inside of the Panels even in conditions of 100% relative humidity, condensation, corrosive substances and gases.
Параметры
| Built-in depth | 75.0 |
| Suitable for safety functions | Нет |
| Screen diagonal | 15.4 |
| Operation temperature | 0 |
| Voltage type of supply voltage | DC |
| Supporting protocol for LON | Нет |
| Number of HW-interfaces industrial Ethernet | 2 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 2 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| Supporting protocol for TCP/IP | Да |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Да |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Да |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Да |
| With colour display | Да |
| Number of colours of the display | 16777216 |
| Number of pixels, horizontal | 1280 |
| Number of pixels, vertical | 800 |
| Number of function buttons, programmable | 36 |
| With numeric keyboard | Да |
| With alpha numeric keyboard | Да |
| Useful project memory/user memory | 24000.0 |
| With message indication | Да |
| With message system (incl. buffer and confirmation) | Да |
| Process value representation (output) possible | Да |
| Process default value (input) possible | Да |
| With recipes | Да |
| Number of password levels | 50 |
| With printer output | Да |
| Number of online languages | 32 |
| Additional software components, loadable | Да |
| Degree of protection (IP), front side | IP65 |
| With SW interfaces | Нет |
| Width of the front | 483.0 |
| Height of the front | 310.0 |
| Rail mounting possible | Нет |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Number of interfaces PROFINET | 2 |
| Number of HW-interfaces Wireless | 0 |
| Wall mounting/direct mounting | Нет |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| IO link master | Нет |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Да |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Да |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 19.2 |
| Type of display | TFT |
| Number of grey-scales/blue-scales of display | - |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| Number of buttons with LED | 36 |
| Number of system buttons | - |
| Touch technology | - |
| Degree of protection (NEMA), front side | - |
