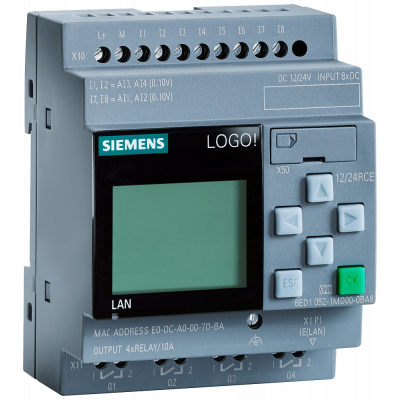

SIPLUS LOGO! 12/24RCE -20 ... +70 °C based on 6ED1052-1MD08-0BA0
477.00€
Включая НДС
Артикул: 6AG1052-1MD08-7BA0
SIPLUS LOGO! 12/24RCE, логический модуль, рабочая температура -20 ... +60°C, пуск при -20°C, со стойким покрытием, на основе 6ED1052-1MD08-0BA0 . логический модуль, дисплей, напряжение питания/входов/выходов: =12/24 В/реле, 8 DI (4AI)/4DO, память 400 блоков, модульное расширение, Ethernet, встроенный web-сервер, архивация данных, пользовательские Web-страницы, стандартная microSD-карта, для LOGO! Soft Comfort V8 или выше, можно использовать проекты для предыдущих версий
Параметры
| Width | 71.5 |
| Height | 90.0 |
| Depth | 60.0 |
| Expandable | Да |
| Switching current | 10 |
| With timer | Да |
| With display | Да |
| Suitable for safety functions | Нет |
| Number of digital inputs | 8 |
| Number of digital outputs | 4 |
| Number of analogue inputs | 4 |
| Number of analogue outputs | 0 |
| Voltage type of supply voltage | DC |
| Supporting protocol for LON | Да |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | Нет |
| Supporting protocol for TCP/IP | Да |
| Supporting protocol for ASI | Нет |
| Supporting protocol for PROFIBUS | Нет |
| Supporting protocol for CAN | Нет |
| Supporting protocol for INTERBUS | Нет |
| Supporting protocol for KNX | Нет |
| Supporting protocol for MODBUS | Нет |
| Supporting protocol for Data-Highway | Нет |
| Supporting protocol for DeviceNet | Нет |
| Supporting protocol for SUCONET | Нет |
| Supporting protocol for other bus systems | Нет |
| Redundancy | Нет |
| With relay output | Да |
| Rail mounting possible | Да |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | Нет |
| Appendant operation agent (Ex ib) | Нет |
| Degree of protection (IP) | IP20 |
| Supporting protocol for SERCOS | Нет |
| Supporting protocol for INTERBUS-Safety | Нет |
| Category according to EN 954-1 | - |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Front build in possible | Да |
| Rack-assembly possible | Нет |
| Wall mounting/direct mounting | Да |
| Expansion device | Нет |
| Radio standard Bluetooth | Нет |
| Radio standard WLAN 802.11 | Нет |
| Basic device | Да |
| IO link master | Нет |
| Performance level acc. EN ISO 13849-1 | - |
| Supporting protocol for AS-Interface Safety at Work | Нет |
| Supporting protocol for DeviceNet Safety | Нет |
| Supporting protocol for EtherNet/IP | Нет |
| Supporting protocol for Foundation Fieldbus | Нет |
| Supporting protocol for PROFINET CBA | Нет |
| Supporting protocol for PROFINET IO | Нет |
| Supporting protocol for PROFIsafe | Нет |
| Supporting protocol for SafetyBUS p | Нет |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 10.8 |
| Radio standard GPRS | Нет |
| Radio standard GSM | Нет |
| Radio standard UMTS | Нет |
| SIL according to IEC 61508 | - |
