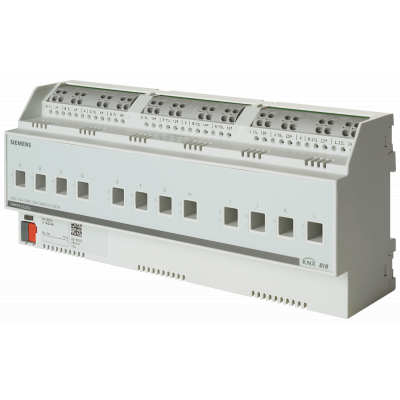

Switch actuator N530D61 12x 230 V AC, 6 AX
по запросу
Артикул: 5WG1530-1DB61
Switch actuator N530D61 12x 230 V AC, 6 AX
Параметры
| Mounting method | DRA (DIN-rail adapter) |
| Rated current | 6.0 |
| Output power | 2300.0 |
| Rated operating voltage | 230 |
| Bus system KNX | Да |
| Bus system radio frequent | Нет |
| Bus system Powernet | Нет |
| Max. switching power | 2300 |
| Bus connection included | Да |
| Max. number of switching contacts | 12 |
| Width in number of modular spacings | 12 |
| Max. switching current | - |
| Other bus systems | - |
| Number of binary inputs | 0 |
| Bus system LON | Нет |
| Suitable for C-load | Да |
| Different phases connectable | Да |
| Local operation/hand operation | Да |
| Degree of protection (IP) | IP20 |
| With LED indication | Нет |
| Modular expandability | Нет |
| Bus system KNX radio | Нет |
| Radio frequent bidirectional | Нет |
| Bus module detachable | Нет |
| Min. depth of built-in installation box | - |
