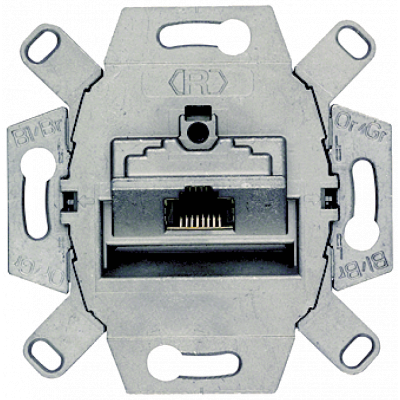

DELTA UAE connection socket 1 x 8-pole RJ45 Cat. 6 E compact.
37.16€
Включая НДС
Артикул: 5TG2026-1
UAE РОЗЕТКА 1X8POLE STP RJ45 CAT6 E DELTA m-system - design and quality to perfection from Siemens. Our m-system provides different module inserts for signaling and communication purposes. The Siemens m-system offers the following advantages: 1. Due to its modular design, use is possible in the DELTA line, DELTA miro, DELTA profil and DELTA style ranges. 2. A module holder can be fitted with up to two different functions. www.siemens.com/delta. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Параметры
| Mounting method | Flush mounted (plaster) |
| Assembly arrangement | Basic element |
| Colour | Other |
| Halogen free | Да |
| With hinged lid | Нет |
| Utilization | UAE/IAE (ISDN) |
| Surface protection | Other |
| Outlet direction | Below |
| With strain relief | Нет |
| Material quality | Other |
| Imprintable label | Without indication field |
| Suitable for number of connectors | 1 |
| Material | Metal |
| Type of fastening | Mounting with screw |
| Shielded buses | Да |
| Shielded housing | - |
| Luster terminal | Нет |
| RAL-number (akin) | - |
| With dust cover | Нет |
| With imprint | Нет |
| With buses/couplings | - |
| Support ring | - |
| Transparent | Нет |
| Surface finishing | Not applicable |
| Suitable for degree of protection (IP) | IP20 |
| Width of device | 70.0 |
| Height of device | 70.0 |
| Depth of device | 40.0 |
| Number of modules (module system) | - |
| Min. depth of built-in installation box | - |
