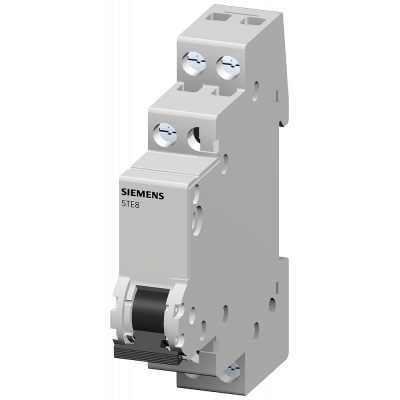

Off switch 20 A 1 NO

ВЫКЛЮЧАТЕЛЬ D=70ММ 20А 1-ПОЛЮСНЫЙ Switching devices for mounting onto standard rails for controlling electrical systems. The switchgears from Siemens for standard rail mounting are an important elements of SENTRON components for electrical installations and are used in control cabinets and distribution boards for switching small loads on/off or over. Whether with remote or manual switching, latch or touch function, and for infrastructure or industrial requirements, Siemens provides switchgears for all applications and every application area. User-friendly mounting and connection technology, standardized accessories and an integrated design are the key features of this device family. The Siemens switching devices are primarily characterized by: 1. Comprehensive applications for switching small loads. 2. A wide variety of standardized accessories, easy to install and replaceable at any time. 3. Space-saving and easy mounting onto standard mounting rails. 4. Combination with remote control switches possible. 5. Reliable safety during installation due to standard reach-around and touch protection. 6. Optimized technology for your safety - only from Siemens. www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.

Параметры

Voltage type	AC
Switching function	Off switch
With signal lamp	Нет
Built-in depth	70.0
Rated current	20.0
Rated voltage	230
Max. lamp power	-
Number of poles	1
Lamp type	Other
Short-circuit breaking capacity (Icw)	10.0
Rated switching capacity	0.06
Width in number of modular spacings	1
Colour calotte	Other
Lamp socket	Other
Min. rated voltage	-
Forced segregation (according to DIN VDE 0113)	Нет
Degree of protection (IP)	Other
Number of contacts as normally closed contact	-
Number of contacts as normally open contact	1
Number of contacts as change-over contact	-
