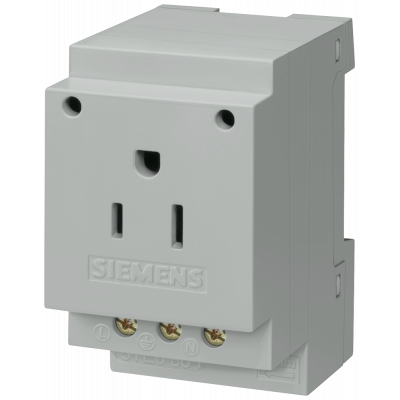

Socket outlet 15 A/AC 125 V acc. to IEC 60083, UL version type NEMA, for mounting in DB.
78.32€
Включая НДС
Артикул: 5TE6804
РОЗЕТКА SCHUKO 16A IEC 60083, UL VERSION ТИП NEMA Switching devices for mounting on standard mounting rails for controlling electrical systems. The switching devices for standard rail mounting from Siemens are an important part of the SENTRON components for electrical installation and are used in control cabinets and distribution boards for switching small loads on/off or over. With remote or manual switching, maintained or momentary contact, for infrastructure or industrial requirements - Siemens provides switching devices for all applications and every area of use. User-friendly mounting and connection technology, standardized accessories and an integrated design – these are the characteristics of the device family. The Siemens switching devices are primarily characterized by: 1. Comprehensive applications for switching small loads. 2. A wide variety of standardized accessories, easy to install and replaceable at any time. 3. Space-saving and easy mounting onto standard mounting rails. 4. Combination with remote control switches possible. 5. Reliable safety during installation due to standard reach-around and touch protection. 6. Optimized technology for your safety - only from Siemens. www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, metering and monitoring devices, distribution systems as well as switches and socket outlets for safe and efficient electrical infrastructure in buildings and industry.
Параметры
| Nominal current | - |
| Nominal voltage | 125 |
| Mounting method | Built-in installation |
| Colour | Grey |
| Model | - |
| Halogen free | Да |
| Number of units | - |
| Lockable | - |
| With hinged lid | Нет |
| Connection type | - |
| Surface protection | - |
| With signal lamp | - |
| Number of phases | - |
| With child-protection | Нет |
| Frequency | - |
| With on/off switch | Нет |
| Protective contact | Да |
| Label space/information surface | - |
| Eject-mechanism | - |
| Material quality | Thermoplastic |
| Rotated central insert | Нет |
| Over voltage protection | Нет |
| Fault current protection | Нет |
| Special power supply | No special power supply |
| Insulated mounting | Нет |
| Material | Plastic |
| Rated fault current | - |
| Type of fastening | - |
| For heavy conditions (in accordance with VDE) | - |
| Imprint/indication | - |
| RAL-number (akin) | 7035 |
| Impact strength | - |
| Transparent | - |
| Surface finishing | Matt |
| With miniature fuse | Нет |
| With loop through function | Да |
| Suitable for degree of protection (IP) | IP20 |
| Width of device | 44.0 |
| Height of device | 55.5 |
| Depth of device | 75.0 |
| Number of socket outlets switchable | - |
| With function lighting | - |
| With orientation lighting | - |
| With built-in USB power supply | Нет |
| Number of modules (module system) | - |
| Number of active Pins (round) | - |
| Number of active Pins (flat) | - |
| Protective earth pin round | - |
| Min. depth of built-in installation box | - |
| Antibacterial treatment | Нет |
