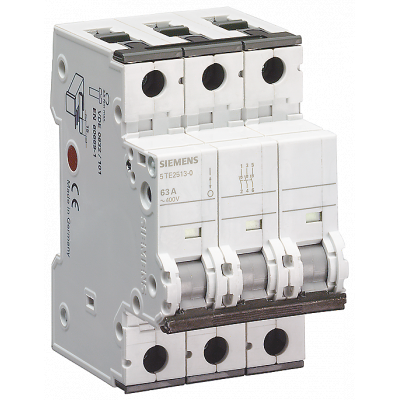

Switch 400 V 3-pole 63 A
66.95€
Включая НДС
Артикул: 5TE2513-0
COMB. VOLTAGE-FREQUENCY RELAY FOR MONITORING OF GENERATORS EQUAL OR BELOW 30 KVA Switching devices for mounting onto standard rails for controlling electrical systems. The switchgears from Siemens for standard rail mounting are an important elements of SENTRON components for electrical installations and are used in control cabinets and distribution boards for switching small loads on/off or over. Whether with remote or manual switching, latch or touch function, and for infrastructure or industrial requirements, Siemens provides switchgears for all applications and every application area. User-friendly mounting and connection technology, standardized accessories and an integrated design are the key features of this device family. The Siemens switching devices are primarily characterized by: 1. Comprehensive applications for switching small loads. 2. A wide variety of standardized accessories, easy to install and replaceable at any time. 3. Space-saving and easy mounting onto standard mounting rails. 4. Combination with remote control switches possible. 5. Reliable safety during installation due to standard reach-around and touch protection. 6. Optimized technology for your safety - only from Siemens. www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Параметры
| Rated operation power at AC-3, 400 V | - |
| Number of auxiliary contacts as normally open contact | 3 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated permanent current Iu | 63.0 |
| Number of poles | 3 |
| Rated operating voltage | 24.0 |
| Conditioned rated short-circuit current Iq | - |
| Degree of protection (IP), front side | IP20 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of switches | 1 |
| Interlockable | Нет |
| Motor drive integrated | Нет |
| Type of electrical connection of main circuit | Screw connection |
| Version as emergency stop installation | Нет |
| Type of control element | Rocker lever |
| Version as main switch | Нет |
| Version as safety switch | Нет |
| Version as maintenance-/service switch | Нет |
| Rated operation power at AC-23, 400 V | - |
| Rated short-time withstand current lcw | 0.756 |
| Colour control element | Grey |
| Suitable for ground mounting | Нет |
| Suitable for front mounting 4-hole | Нет |
| Suitable for front mounting centre | Нет |
| Suitable for distribution board installation | Да |
| Suitable for intermediate mounting | Да |
| Max. rated operation voltage Ue AC | 400 |
| Motor drive optional | Нет |
| Voltage release optional | Нет |
| Device construction | Complete device in housing |
| Rated permanent current at AC-21, 400 V | 63 |
| Switching power at 400 V | - |
| Version as reversing switch | - |
| Rated permanent current at AC-23, 400 V | - |
| Degree of protection (NEMA) | Other |
