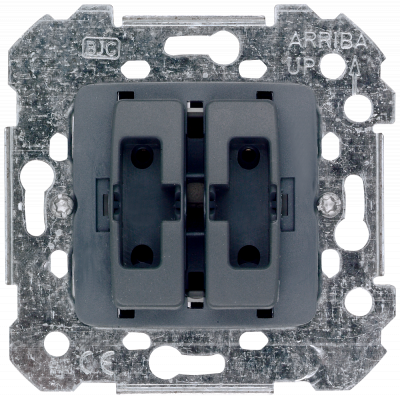

IRIS, MEGA pushbutton double with support ring 10 A 250 V AC claws.
10.30€
Включая НДС
Артикул: 5TD5500-5KK
IRIS, MEGA pushbutton 2-fold with support ring 10A 250V AC claws
Параметры
| Nominal voltage | 250 |
| Mounting method | Flush mounted (plaster) |
| Assembly arrangement | Basic element |
| Method of operation | Push button/touch control button |
| Colour | Other |
| Model | Group push button |
| Halogen free | Да |
| Contacts | 2 make contacts (NO) |
| Imprint | None |
| Surface protection | Other |
| With signal lamp | Нет |
| Rated current | 10.0 |
| Label space/information surface | Нет |
| Feedback-signal contact | Нет |
| Material quality | Other |
| Number of poles | - |
| Material | Metal |
| Type of fastening | Mounting with claw and screw |
| Number of rockers | 2 |
| With lighting | Нет |
| RAL-number (akin) | - |
| Transparent | Нет |
| Surface finishing | Matt |
| Suitable for degree of protection (IP) | IP20 |
| Width of device | 71.0 |
| Height of device | 71.0 |
| Depth of device | 32.0 |
| Number of modules (module system) | - |
| Min. depth of built-in installation box | - |
| Antibacterial treatment | Нет |
